Aluminum Bar/Rod

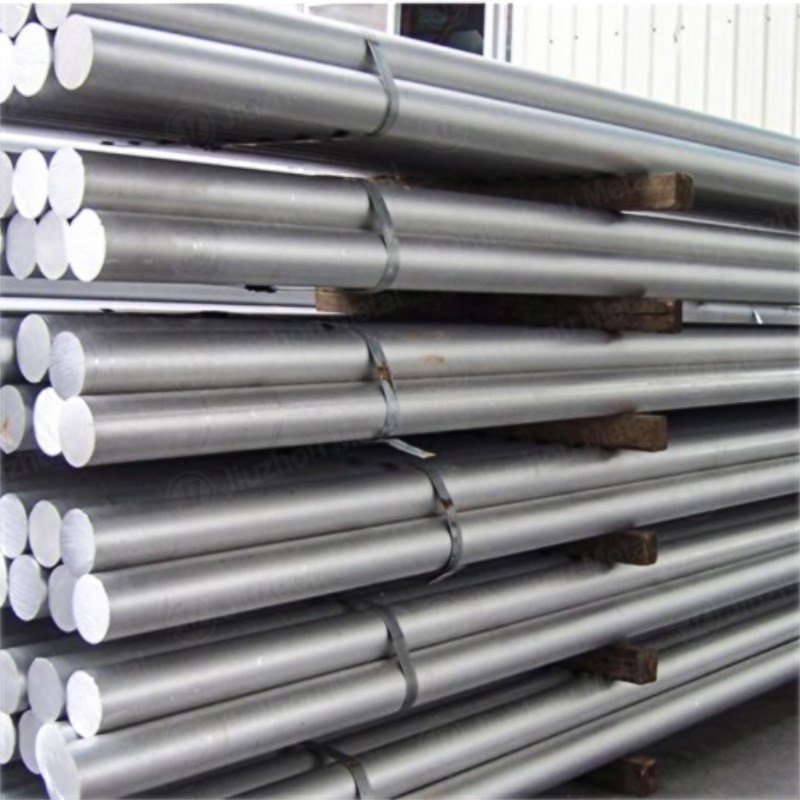

1060 Aluminum Bar/Rod

‹

›

‹

  • 1060 Aluminum Bar/Rod
  • 1060 Aluminum Bar/Rod
  • 1060 Aluminum Bar/Rod
  • 1060 Aluminum Bar/Rod

›

1060 Aluminum Bar and Rod are high-purity aluminum products (minimum 99.60% Al) that offer a slight step up in purity and conductivity from the 1050 grade. These bars are the industry standard for electrical and chemical applications where the material must be easy to form and highly resistant to environmental degradation.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

Electrical PowerNew Energy (EV)Chemical & PetroAerospace (Ground)Food & Medical
Laboratory Equip.Lighting & OpticsConstructionTelecommunicationsManufacturing

Specifications Table

FeatureDetails
Product Name1060 Aluminum Bar / Rod
ShapeRound, Square, Hexagonal, Rectangular (Flat)
Diameter / Size2 mm - 600 mm
Length1000 mm - 6000 mm (Customizable)
TempersO, H12, H14, H112, F
Surface FinishMill finish, Polished, Brushed
ProcessingExtruded, Cold Drawn, Rolled
ToleranceH9, H10, H11 or per customer requirement


Standard Approximate Comparison Table

Region / StandardGB (China)ASTM (USA)EN (Europe)JIS (Japan)ISO (International)
Equivalent Grade10601060EN AW-1060 / Al99.6A1060Al99.6


Chemical Composition Table (%)

Al (Min)Si (Max)Fe (Max)Cu (Max)Mn (Max)Mg (Max)Zn (Max)Ti (Max)V (Max)Other (Each)
99.600.250.350.050.030.030.050.030.050.03


Mechanical Properties Table

TemperTensile Strength, Rm (MPa)Yield Strength, Rp0.2 (MPa)Elongation, A50mm (%)Hardness (HB)
O60 - 95≥ 20≥ 2520
H1485 - 120≥ 70≥ 825
H11260 - 100≥ 20≥ 2020


Physical Properties Table

Density (g/cm³)Melting Point (°C)Thermal Conductivity (W/m·K)Electrical Conductivity (%IACS)Modulus of Elasticity (GPa)
2.70646 - 6572346169



Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
