Aluminum Bar/Rod

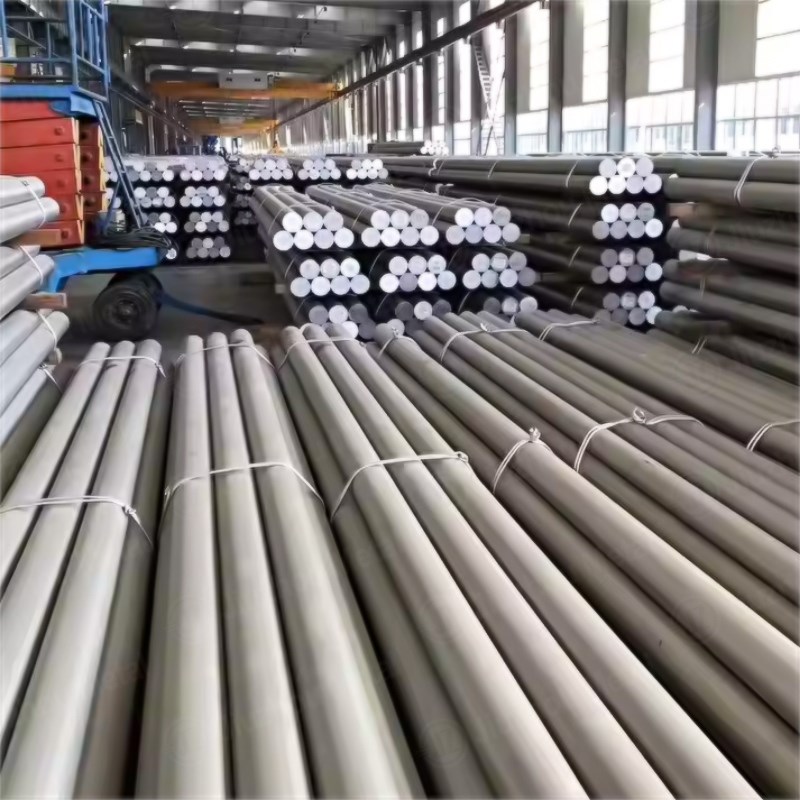

7075 Aluminum Bar/Rod

‹

›

‹

  • 7075 Aluminum Bar/Rod
  • 7075 Aluminum Bar/Rod
  • 7075 Aluminum Bar/Rod
  • 7075 Aluminum Bar/Rod

›

7075 Aluminum Bar and Rod represent the highest strength tier of common commercial aluminum alloys. Primarily alloyed with Zinc, it is widely known as "Aircraft Grade" aluminum because its tensile strength and hardness can rival many types of steel while maintaining the lightweight advantage of aluminum.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

Aerospace & AviationDefense & MilitaryHigh-End Sporting GoodsRacing & AutomotiveSpace Exploration
Precision ToolingRobotics & AIMedical HardwareOil & Gas (Downhole)Hydraulic Systems

Specifications Table

FeatureDetails
Product Name7075 Aluminum Bar / Rod
ShapeRound, Square, Hexagonal, Rectangular (Flat)
Diameter / Size5 mm - 600 mm
Length1000 mm - 6000 mm (Standard: 2500mm, 3000mm, 6000mm)
TempersO, T6, T651, T6511, T73, T7351, F
Surface FinishMill finish, Polished, Brushed, Anodized
ProcessingExtruded, Cold Drawn, Forged
ToleranceH9, H10, H11 or as per specific requirement


Standard Approximate Comparison Table

Region / StandardGB (China)ASTM (USA)EN (Europe)JIS (Japan)ISO (International)
Equivalent Grade70757075EN AW-7075 / AlZn5.5MgCuA7075AlZn5.5MgCu


Chemical Composition Table (%)

AlZnMgCuCrFe (Max)Si (Max)Mn (Max)Ti (Max)Other (Total)
Remainder5.1 - 6.12.1 - 2.91.2 - 2.00.18 - 0.280.500.400.300.200.15


Mechanical Properties Table

TemperTensile Strength, Rm (MPa)Yield Strength, Rp0.2 (MPa)Elongation, A50mm (%)Hardness (HB)
O≤ 275≤ 145≥ 1060
T6 / T651≥ 540≥ 470≥ 7150
T73 / T7351≥ 460≥ 390≥ 8135


Physical Properties Table

Density (g/cm³)Melting Point (°C)Thermal Conductivity (W/m·K)Electrical Conductivity (%IACS)Modulus of Elasticity (GPa)
2.81477 - 6351303371.7



Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
