Aluminum Plate/Sheet

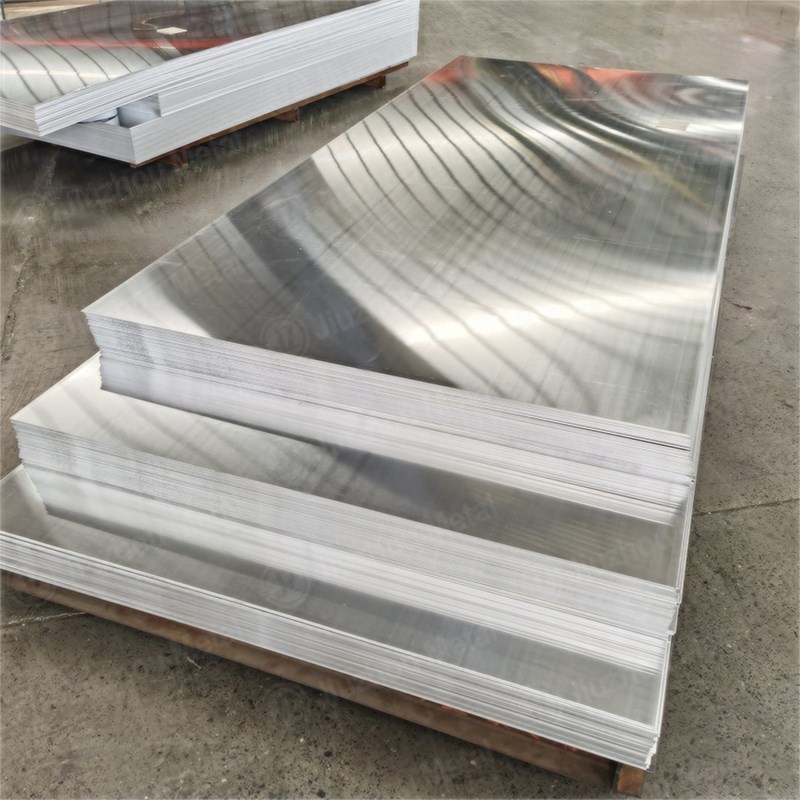

3003 Aluminum Plate/Sheet

‹

›

‹

  • 3003 Aluminum Plate/Sheet
  • 3003 Aluminum Plate/Sheet
  • 3003 Aluminum Plate/Sheet
  • 3003 Aluminum Plate/Sheet

›

3003 Aluminum Plate/Sheet is a widely used manganese-alloyed aluminum known for its excellent atmospheric corrosion resistance and moderate strength, which is roughly 20% stronger than 1100 series alloys. As a non-heat-treatable grade, it offers outstanding workability, weldability, and deep-drawing capabilities, allowing it to be easily formed into complex shapes.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

HVAC & RefrigerationChemical & Food ProcessBuilding & ConstructionAutomotive & TransportKitchenware & Appliances
Power & EnergyPackaging & ContainersHardware & ToolingMarine (Non-Structural)Signage & Decoration


Specifications Table

FeatureDetails
Product Name3003 Aluminum Plate / Sheet
Thickness0.1 mm - 500 mm
Width100 mm - 2600 mm (Standard: 1000mm, 1220mm, 1250mm, 1500mm)
Length500 mm - 16000 mm (Standard: 2000mm, 2440mm, 2500mm, 3000mm)
TempersO, H12, H14, H16, H18, H22, H24, H112, F
Surface FinishMill finish, Bright, Polished, Embossed, Chequered (Tread)
ProtectionInterleaved paper, clear PE/PVC protective film (upon request)


Standard Approximate Comparison Table

Region / StandardGB (China)ASTM (USA)EN (Europe)JIS (Japan)ISO (International)
Equivalent Grade30033003EN AW-3003 / AlMn1CuA3003AlMn1Cu


Chemical Composition Table (%)

AlSi (Max)Fe (Max)CuMnZn (Max)Other (Each)Other (Total)
Remainder0.600.700.05 - 0.201.0 - 1.50.100.050.15


Mechanical Properties Table

TemperTensile Strength, Rm (MPa)Yield Strength, Rp0.2 (MPa)Elongation, A50mm (%)
O95 - 130≥ 35≥ 25
H14140 - 180≥ 115≥ 8
H24150 - 195≥ 110≥ 10
H18≥ 185≥ 165≥ 4
H11295 - 130≥ 35≥ 20


Physical Properties Table

Density (g/cm³)Melting Point (°C)Thermal Conductivity (W/m·K)Electrical Conductivity (%IACS)Modulus of Elasticity (GPa)
2.73643 - 6541934170


Quick Links

Packaging Shipping

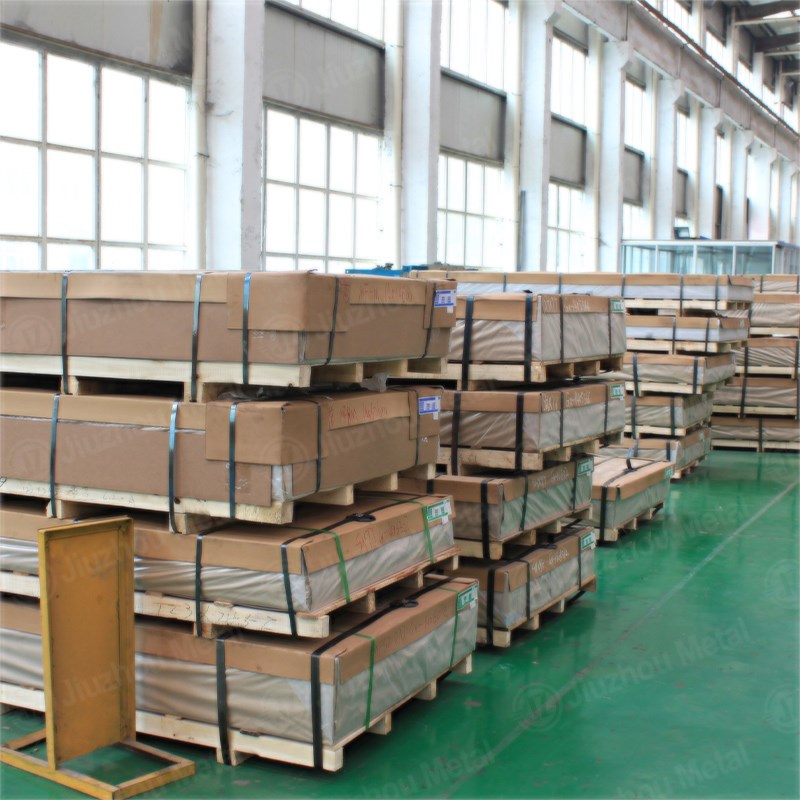

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
