Aluminum Pipe/Tube

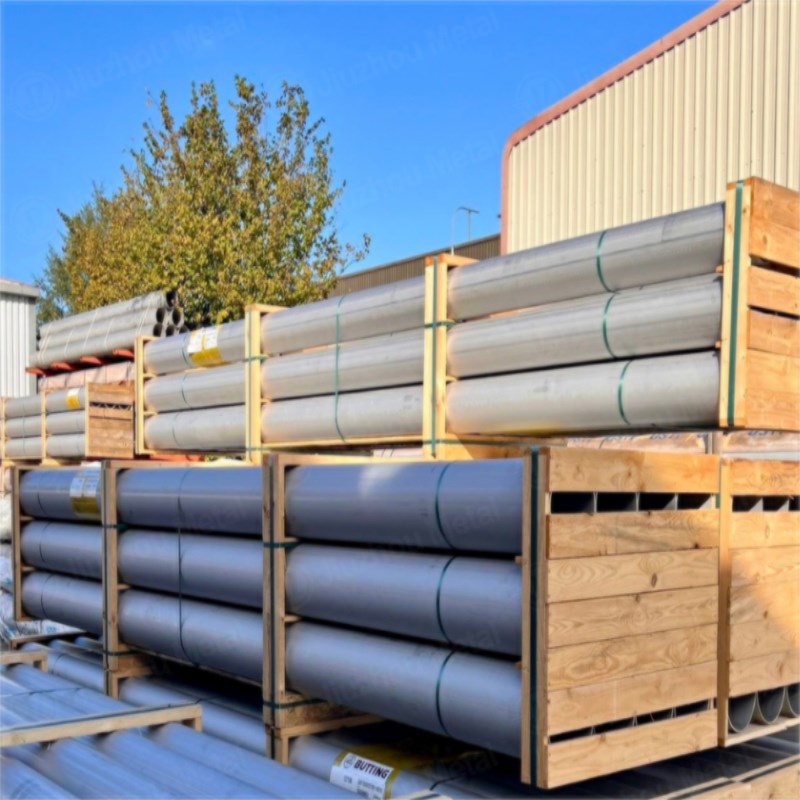

5052 Aluminum Pipe/Tube

‹

›

‹

  • 5052 Aluminum Pipe/Tube
  • 5052 Aluminum Pipe/Tube
  • 5052 Aluminum Pipe/Tube
  • 5052 Aluminum Pipe/Tube

›

5052 Aluminum Pipe/Tube is a high-performance magnesium-alloyed aluminum product, recognized as one of the best choices for applications requiring high fatigue strength and exceptional corrosion resistance, particularly in marine environments. While it is a non-heat-treatable alloy, it offers significantly higher strength than the 1000 or 3000 series.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

Marine & ShipbuildingAerospace & AviationAutomotive & TransportOil & GasHydraulics & Pneumatics
Chemical ProcessingMedical EquipmentHigh-End FurnitureDefense & MilitaryElectronics Enclosures


Specifications Table

FeatureDetails
Product Name5052 Aluminum Pipe / Tube
ShapeRound, Square, Rectangular, Custom Extruded Profiles
Outer Diameter (OD)3 mm - 500 mm (Custom sizes available)
Wall Thickness (WT)0.5 mm - 50 mm
Length1000 mm - 12000 mm (Standard: 3000mm, 5800mm, 6000mm)
TempersO, H32, H34, H111, H112, F
Processing MethodExtruded, Seamless, Drawn
Surface FinishMill finish, Anodized, Polished, Brushed


Standard Approximate Comparison Table

Region / StandardGB (China)ASTM (USA)EN (Europe)JIS (Japan)ISO (International)
Equivalent Grade50525052EN AW-5052 / AlMg2.5A5052AlMg2.5


Chemical Composition Table (%)

AlMgCrFe (Max)Si (Max)Cu (Max)Mn (Max)Zn (Max)Other (Each)Other (Total)
Remainder2.2 - 2.80.15 - 0.350.400.250.100.100.100.050.15


Mechanical Properties Table

TemperTensile Strength, Rm (MPa)Yield Strength, Rp0.2 (MPa)Elongation, A50mm (%)
O170 - 215≥ 65≥ 16
H32215 - 265≥ 130≥ 7
H34235 - 285≥ 150≥ 5
H112≥ 170≥ 65≥ 14


Physical Properties Table

Density (g/cm³)Melting Point (°C)Thermal Conductivity (W/m·K)Electrical Conductivity (%IACS)Modulus of Elasticity (GPa)
2.68607 - 6491383570


Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
