Aluminum Pipe/Tube
6061 Aluminum Pipe/Tube

‹

›

‹

  • 6061 Aluminum Pipe/Tube
  • 6061 Aluminum Pipe/Tube
  • 6061 Aluminum Pipe/Tube
  • 6061 Aluminum Pipe/Tube

›

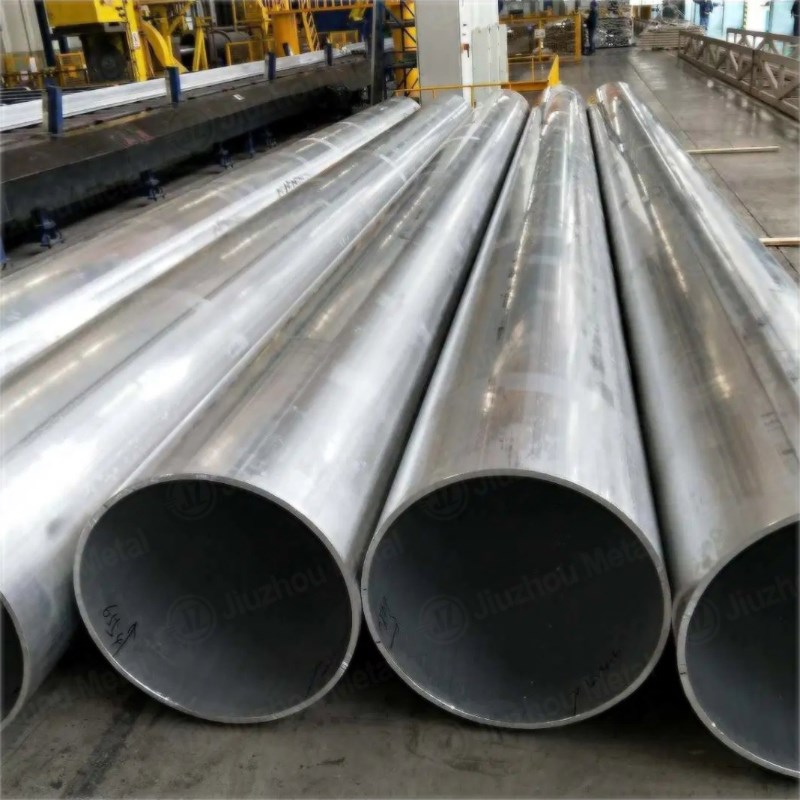

6061 Aluminum Pipe/Tube is one of the most versatile and widely used heat-treatable structural alloys. Primarily alloyed with magnesium and silicon, it offers a balanced combination of high strength, excellent corrosion resistance, and superior weldability, making it the "gold standard" for structural applications.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

Gemini 说

Aerospace & AviationConstruction & BridgesAutomotive StructuralMarine EngineeringMachinery & Robotics
Bicycle & SportingRenewable EnergyOil & GasElectronicsDefense & Military


Specifications Table

FeatureDetails
Product Name6061 Aluminum Pipe / Tube
ShapeRound, Square, Rectangular, Custom Extruded Profiles
Outer Diameter (OD)5 mm - 600 mm (Custom sizes available)
Wall Thickness (WT)0.5 mm - 50 mm
Length1000 mm - 12000 mm (Standard: 3000mm, 5800mm, 6000mm)
TempersO, T4, T6, T651, F
Processing MethodExtruded, Seamless, Drawn
Surface FinishMill finish, Anodized, Polished, Sandblasted


Standard Approximate Comparison Table

Region / StandardGB (China)ASTM (USA)EN (Europe)JIS (Japan)ISO (International)
Equivalent Grade60616061EN AW-6061 / AlMg1SiCuA6061AlMg1SiCu


Chemical Composition Table (%)

AlMgSiCuCrFe (Max)Zn (Max)Mn (Max)Ti (Max)Other (Each)Other (Total)
Remainder0.8 - 1.20.40 - 0.80.15 - 0.400.04 - 0.350.700.250.150.150.050.15


Mechanical Properties Table

TemperTensile Strength, Rm (MPa)Yield Strength, Rp0.2 (MPa)Elongation, A50mm (%)
O≤ 150≤ 80≥ 16
T4≥ 205≥ 110≥ 14
T6 / T651≥ 290≥ 240≥ 8


Physical Properties Table

Density (g/cm³)Melting Point (°C)Thermal Conductivity (W/m·K)Electrical Conductivity (%IACS)Modulus of Elasticity (GPa)
2.70582 - 6521674369


Quick Links

Packaging Shipping

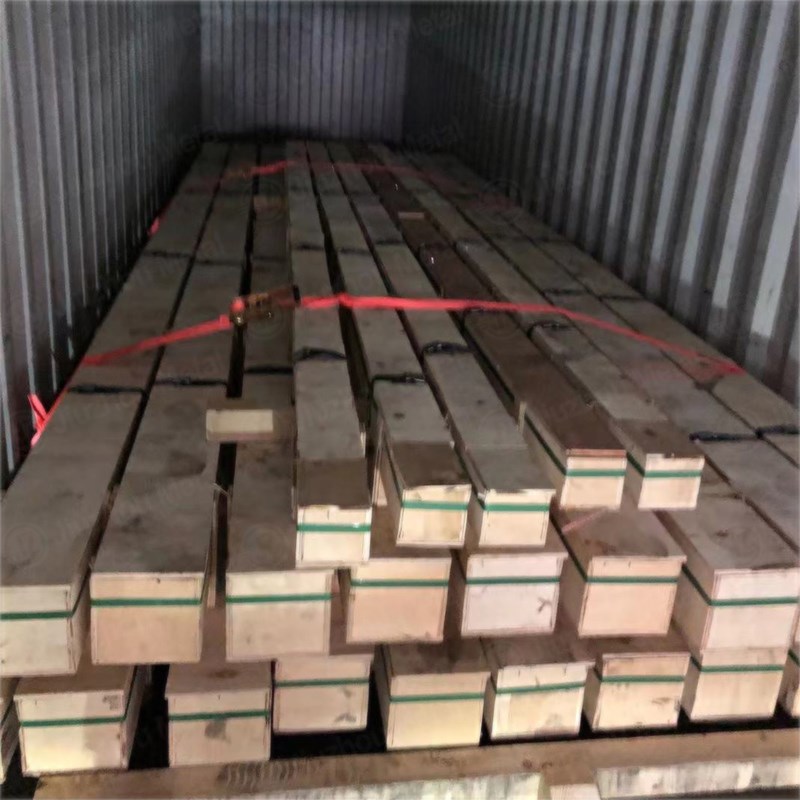

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
