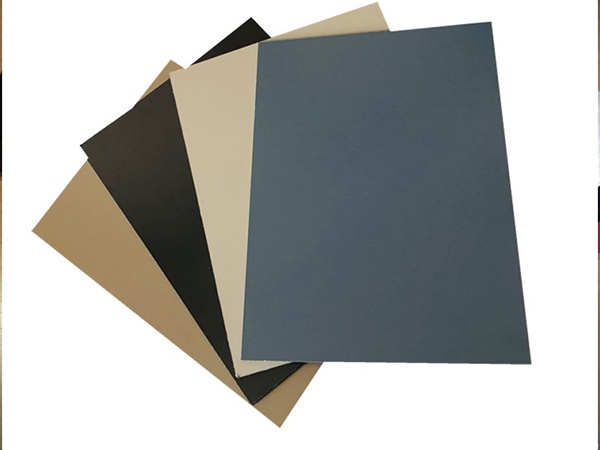

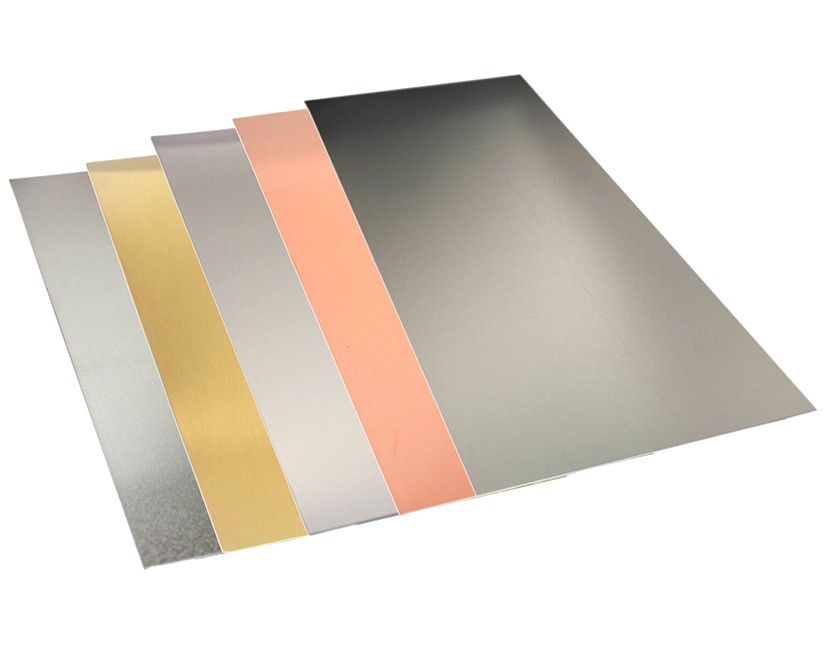

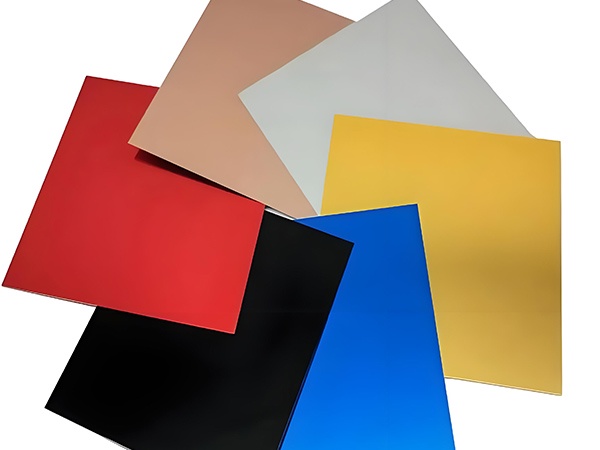

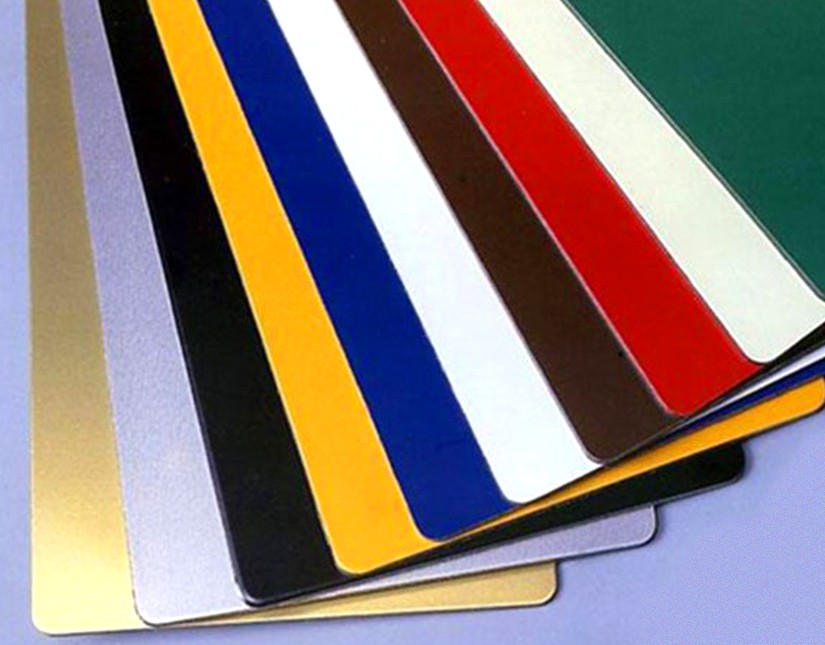

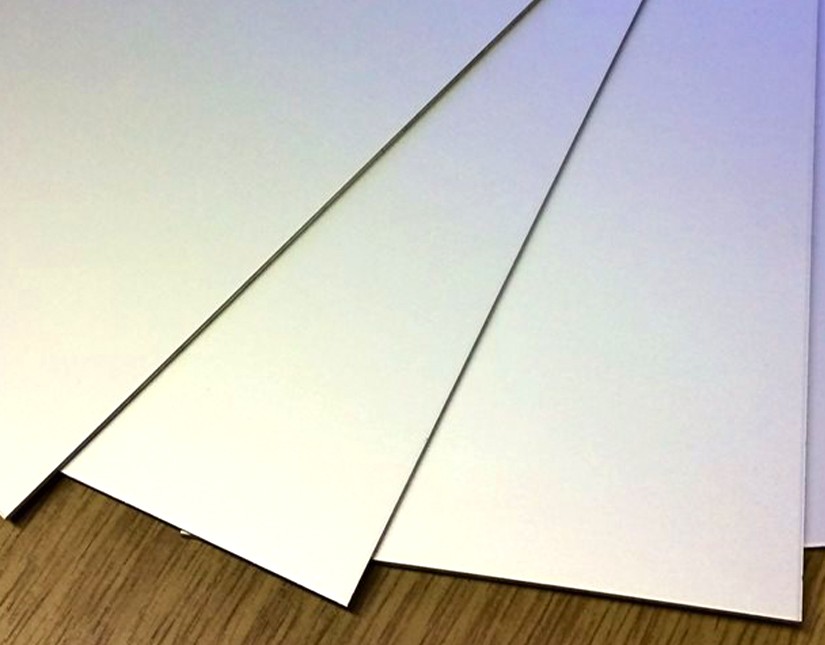

PVDF / Powder Coated Aluminum Sheets

We provide premium Color Coated Aluminum Sheets and Coils designed specifically for modern architectural cladding and roofing. Utilizing high-performance PVDF (Kynar 500) coatings, our products offer exceptional weather resistance, guaranteeing 15-20 years of color retention even in extreme outdoor conditions. For interior and decorative applications, our Polyester (PE) and Powder Coated series provide a durable, scratch-resistant finish with unlimited color possibilities. Available in alloys 3003 and 5052, our sheets combine lightweight strength with superior formability, making them the material of choice for curtain walls, honeycomb panels, and aluminum ceilings.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

Architectural Facades	Roofing & Cladding	ACP Manufacturing	Interior Ceilings	Signage & Billboards
Transport Vehicles	Home Appliances	Gas Station Canopies	Industrial Insulation	Electronic Casinge

Product Parameters

Parameter	Specification Details
Base Material	Aluminum Alloy (AA Series)
Alloy Grade	1xxx Series: 1100, 1050, 1060 (Pure Al, Economic)3xxx Series: 3003, 3004, 3105 (Al-Mn, Anti-rust, Standard for Construction)5xxx Series: 5005, 5052 (Al-Mg, High Strength, Marine Grade)
Temper	H14, H24 (Half Hard), H16, H18, H32
Thickness Range	0.2mm - 1.2mm (for Coils/Roofing)1.5mm - 4.0mm (for Solid Sheets/Curtain Walls)
Width	Standard: 1000mm, 1220mm, 1250mmMax: Up to 2000mm (Extra Wide)
Coating Type A	PVDF (Flurocarbon) - Kynar 500 / Hylar 5000 (2 or 3 coats)
Coating Type B	Powder Coating (Electrostatic Spray)
Coating Type C	PE (Polyester) - For Indoor use
Coating Thickness	PVDF: 25 - 35 microns (μm)Powder: 60 - 120 microns (μm)PE: 16 - 25 microns (μm)
Protective Film	50 - 80 microns PE Film (Black/White or Transparent) with Brand Logo
Standard	ASTM B209, EN 485, GB/T 3880, AAMA 2605 (for PVDF)

Coating Performance Comparison

Feature	PVDF Coating (Roll Coated)	Powder Coating (Sprayed)	PE Coating (Polyester)
Main Application	High-end Outdoor (Facades, Roofing)	Heavy Duty (Facades, Screens)	Indoor (Ceilings, Signage)
Weather Resistance	Excellent (No fading for decades)	Very Good	Fair (Fades in sunlight)
Warranty	15 - 20 Years	10 - 15 Years	5 - 8 Years
Film Thickness	Thin & Smooth (25-30μm)	Thick & Hard (60-100μm)	Thin (16-20μm)
Abrasion Resistance	Good	Excellent (Harder surface)	Moderate
Standard	AAMA 2605	AAMA 2604 / 2605	AAMA 2603

Physical & Mechanical Properties

Property	Value (AA3003 H24)	Notes
Tensile Strength	145 - 195 MPa	Strength of the base metal.
Yield Strength	≥ 115 MPa	Point of permanent deformation.
Elongation	≥ 10%	Formability (bending without cracking).
Pencil Hardness	≥ 2H (PVDF) / ≥ 3H (Powder)	Scratch resistance.
Gloss Level	10% - 90% (Customizable)	Matte, Satin, or High Gloss.
MEK Resistance	≥ 100 Double Rubs	Solvent resistance test.
T-Bend Test	≤ 2T	Flexibility of the paint (won't peel when bent).

Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.

-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)

-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)

-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.

Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.

Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
