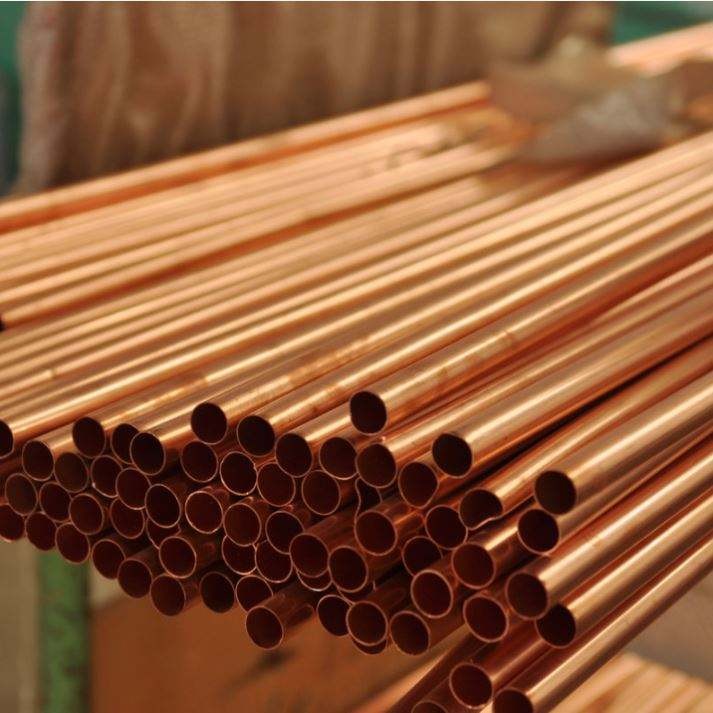

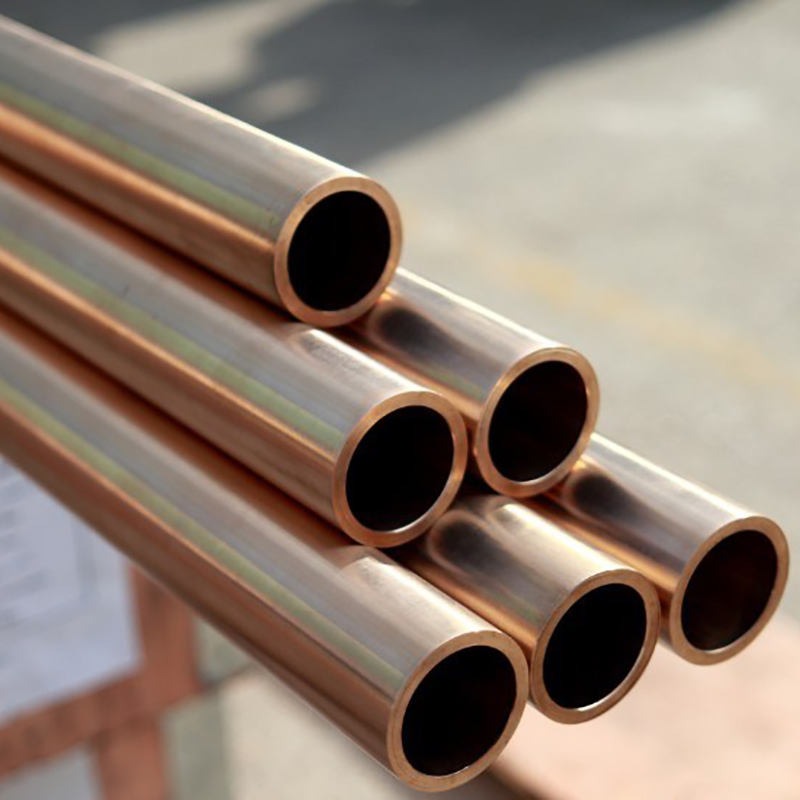

C10100 Copper Pipe/Tube

C10100 copper pipe, known as Oxygen-Free Electronic (OFE) copper, boasts a minimum copper content of 99.99%, making it one of the purest forms of copper available. It's characterized by its exceptional electrical and thermal conductivity, excellent ductility, and high resistance to corrosion. The absence of oxygen in its composition prevents embrittlement at high temperatures, enhancing its suitability for welding and brazing. C10100 is extensively used in electrical applications, including high-quality conductors, semiconductor devices, and superconductors. Its high conductivity and purity make it ideal for use in vacuum environments and in applications where magnetic fields are a concern, such as in MRI equipment and other sensitive electronic devices.

Description

Applications

High-Vacuum TechSemiconductorsNuclear PhysicsMedical TechTelecommunications
Space ExplorationSuperconductorsCryogenicsAudio ProductionPower Electronics

Specifications Table

FeatureDetails
Product NameC10100 Oxygen-Free Electronic (OFE) Copper Tube
StandardASTM B75, ASTM B170 (Grade 1), EN 13600
Purity≥99.99% Cu
Outside Diameter (OD)2 mm - 150 mm
Wall Thickness (WT)0.2 mm - 15 mm
Length2m - 6m, or precision-cut pieces
TemperSoft Annealed (O60), Half-Hard (H02), Hard (H04)
Surface FinishBright Annealed (BA), Electro-Polished, Mirror Finish


Standard Grade Comparison Table

Region / StandardUNS (USA)EN/DIN (Europe)JIS (Japan)GB (China)
Equivalent GradeC10100CW009A / Cu-OFEC1011TU1


Chemical Composition Table (%)

ElementCopper (Cu)Oxygen (O)Phosphorus (P)Tellurium (Te)Lead (Pb)
Range≥99.99≤0.0005≤0.0003≤0.001≤0.001

Mechanical Properties Table (Typical for H02 Half-Hard)

PropertyPerformance Data
Tensile Strength (Rm)260 - 340 MPa
Yield Strength (Rp0.2)200 - 300 MPa
Elongation (A50mm)

≥10%

Hardness (Rockwell F)75 - 90 HRF


Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
