Copper pipe/tube

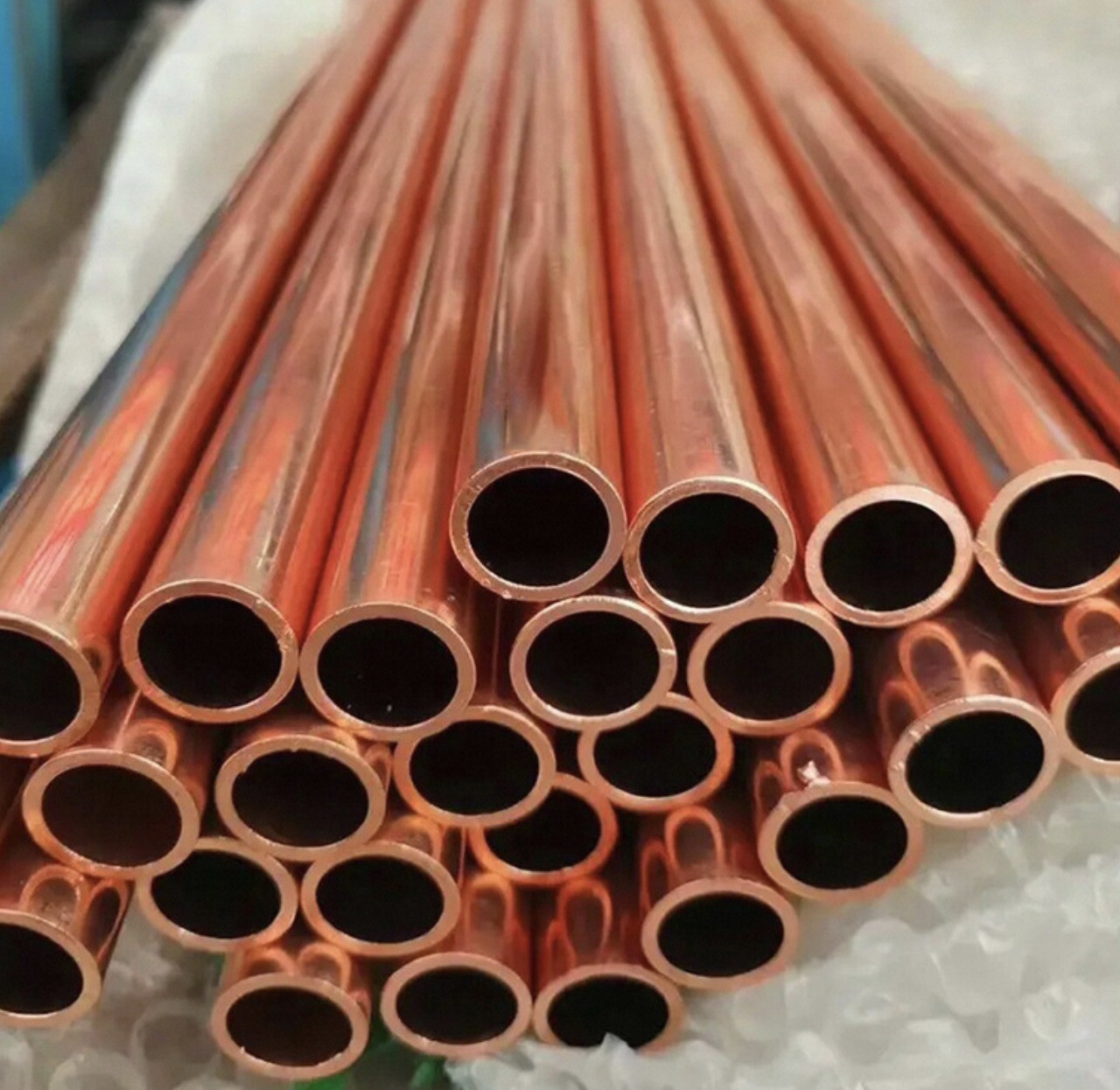

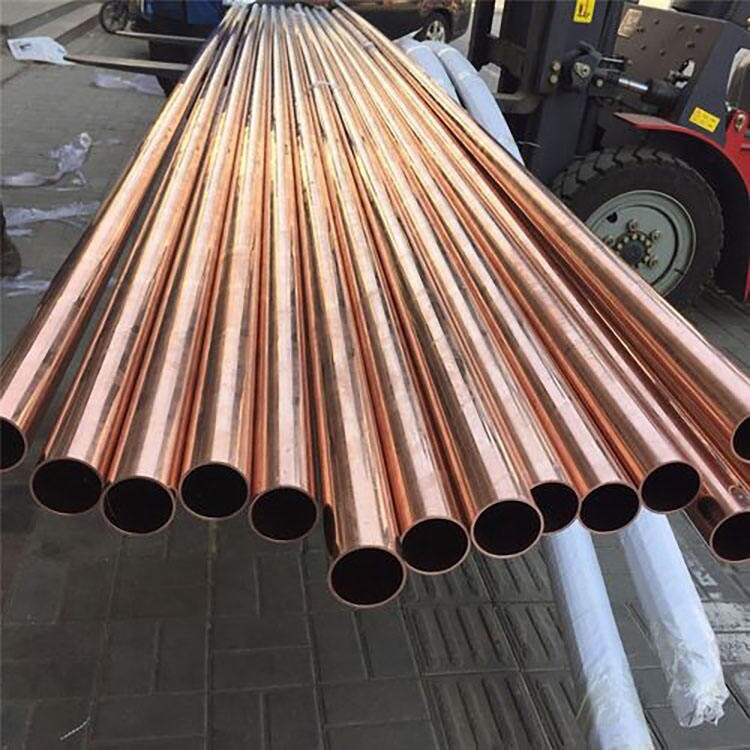

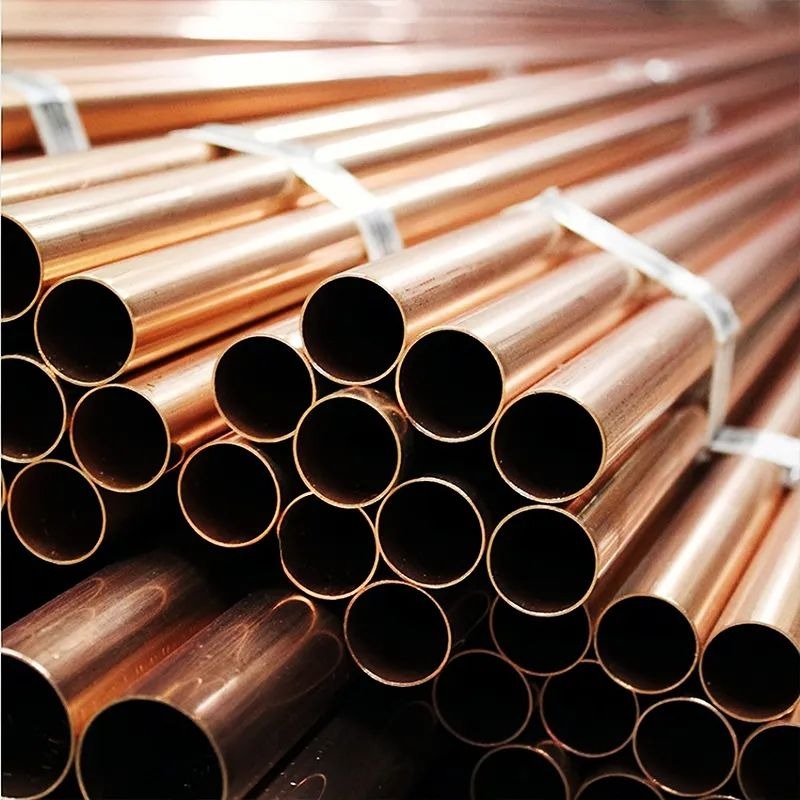

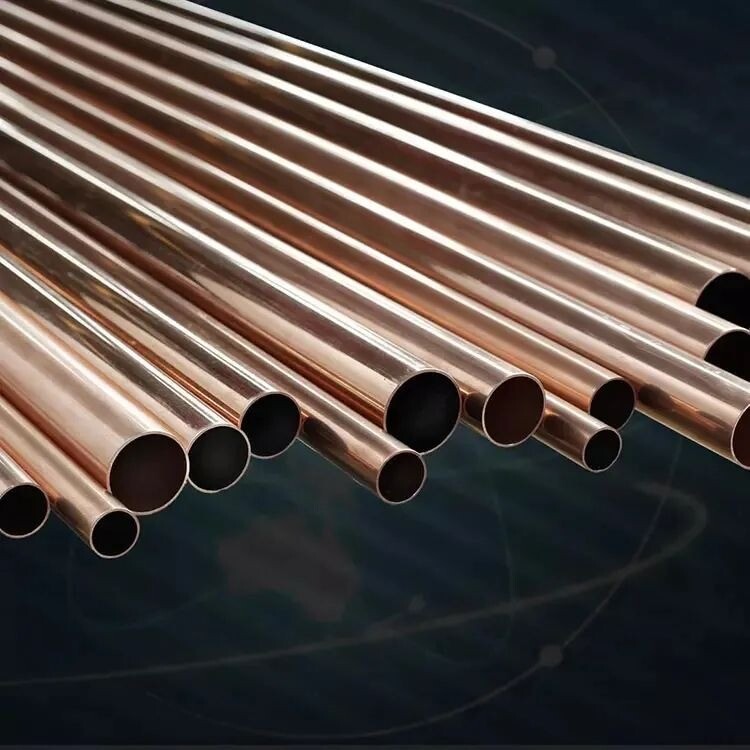

C10200 Copper Pipe/Tube

‹

›

‹

  • C10200 Copper Pipe/Tube
  • C10200 Copper Pipe/Tube
  • C10200 Copper Pipe/Tube
  • C10200 Copper Pipe/Tube
  • C10200 Copper Pipe/Tube

›

C10200 copper pipe, known as Oxygen-Free (OF) copper, contains a minimum of 99.95% copper. It's characterized by high purity, excellent electrical and thermal conductivity, and good corrosion resistance. This pipe is free from oxygen, leading to improved ductility and resistance to hydrogen embrittlement, making it ideal for welding and brazing applications. Commonly used in electrical applications like bus bars, conductors, and telecommunication cables, C10200 is also favored in specialized applications such as vacuum tubes, semiconductor devices, and superconductors. Its high conductivity and purity make it suitable for high-tech and demanding environments where maximum conductivity is essential.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

Vacuum ElectronicsSemiconductorsMedical ImagingCryogenicsNuclear Research
AerospaceTelecommunicationsRenewable EnergyAudio EngineeringPower Distribution

Specifications Table

Product NameC10200 Oxygen-Free Copper Pipe / Tube
StandardASTM B75, ASTM B188 (Bus Pipe), EN 13600
Outside Diameter (OD)3 mm - 250 mm
Wall Thickness (WT)0.5 mm - 25 mm
Length2m - 6m (Straight), or Level Wound Coils (LWC)
Temper (Hardness)Soft/Annealed (O60), Half-Hard (H02), Hard (H04)
Surface FinishBright Annealed (BA), Mirror Polished, Pickled


Standard Grade Comparison Table

Region / StandardUNS (USA)EN/DIN (Europe)JIS (Japan)GB (China)
Equivalent GradeC10200CW008A / Cu-OFC1020TU2


Chemical Composition Table (%)

ElementCopper (Cu)Oxygen (O)Phosphorus (P)Lead (Pb)
Range≥99.95≤0.001≤0.0003≤0.001


Mechanical Properties Table (Typical for H02 Half-Hard)

PropertyPerformance Data
Tensile Strength (Rm)260 - 330 MPa
Yield Strength (Rp0.2)200 - 280 MPa
Elongation (A50mm)≥10%
Hardness (Rockwell F)75 - 90 HRF



Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
