Copper pipe/tube

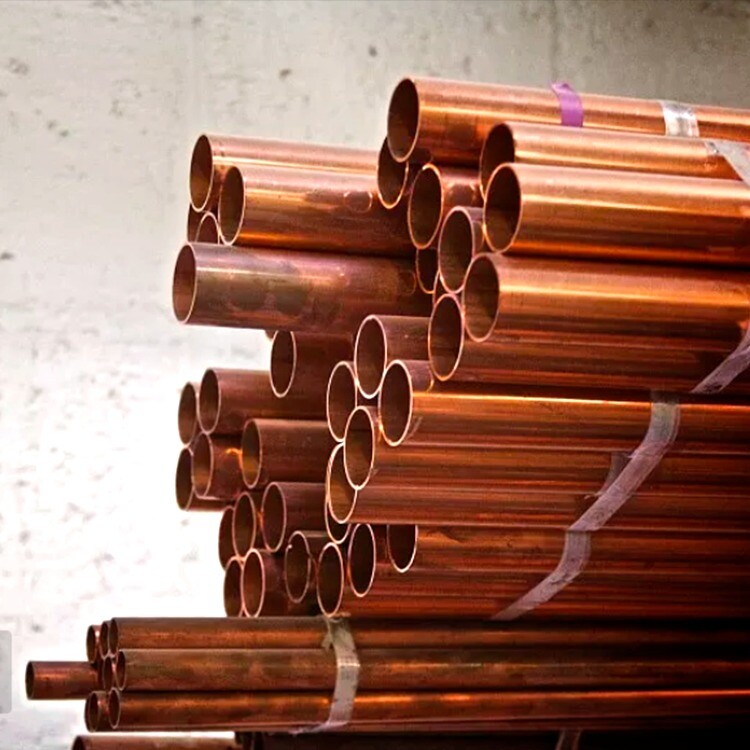

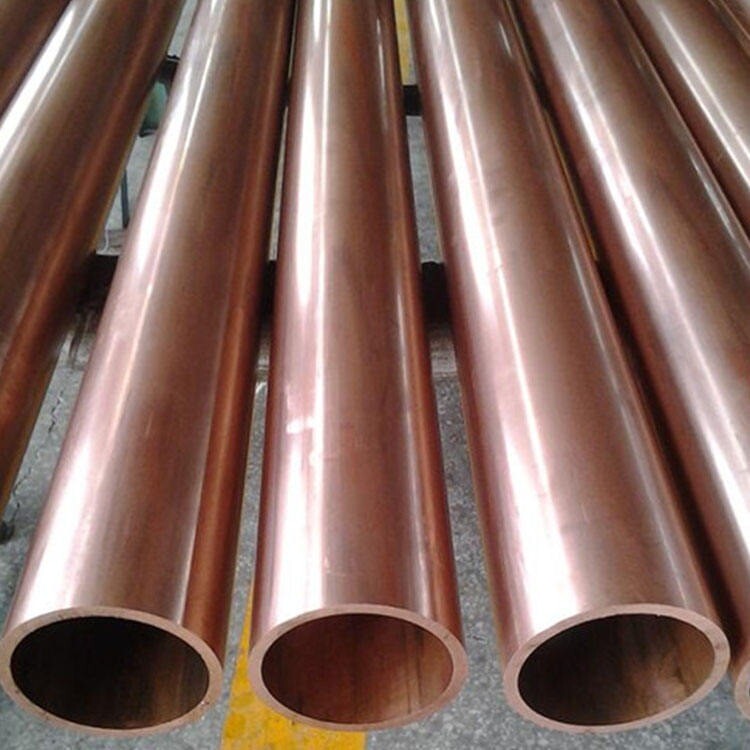

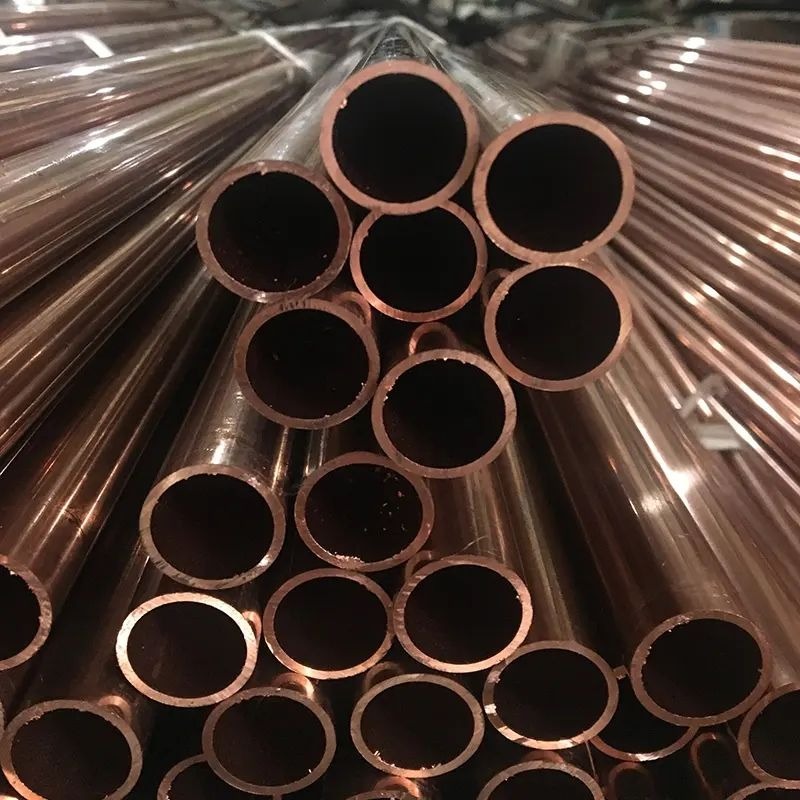

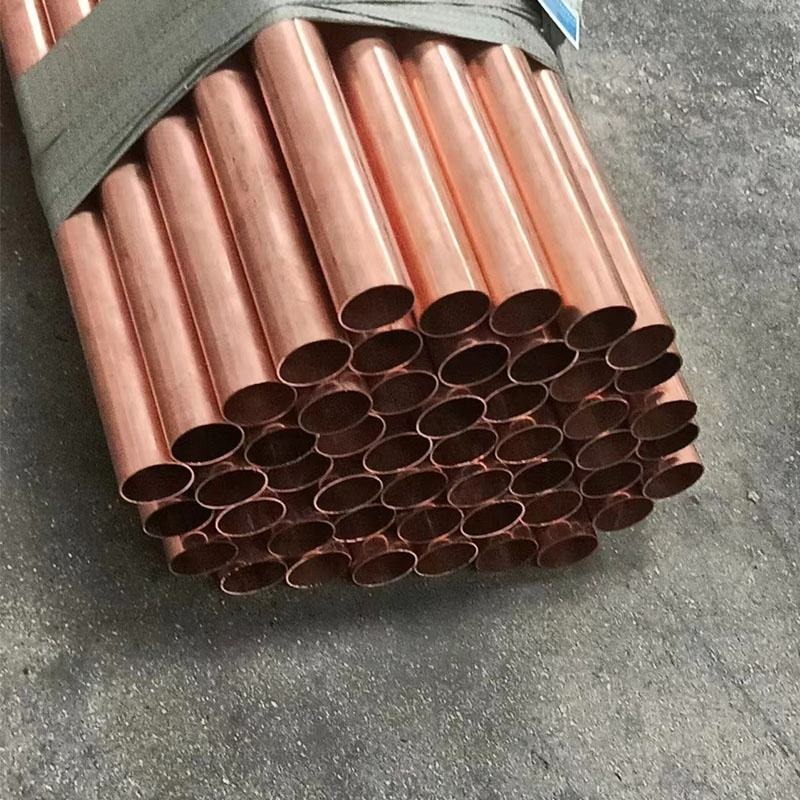

C11000 Copper Pipe/Tube

‹

›

‹

  • C11000 Copper Pipe/Tube
  • C11000 Copper Pipe/Tube
  • C11000 Copper Pipe/Tube
  • C11000 Copper Pipe/Tube
  • C11000 Copper Pipe/Tube

›

C11000 copper pipe, also known as Electrolytic Tough Pitch (ETP) copper, contains a minimum of 99.90% copper, making it highly conductive for both electricity and heat. This pipe is renowned for its excellent ductility, corrosion resistance, and workability. It's widely used in electrical applications such as conductors, transformers, and switchgear. Additionally, due to its thermal conductivity, C11000 is ideal for heat exchangers, plumbing, and HVAC systems. Its corrosion resistance also makes it suitable for use in marine environments. The versatility and reliability of C11000 copper pipe make it a preferred choice in various industrial and architectural applications.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

Power DistributionHVAC & RefrigerationRenewable EnergyTelecommunicationsElectronics
AutomotiveIndustrial Mach.PlumbingMedical GasCryogenics


Specifications Table

FeatureDetails
Product NameC11000 ETP Copper Pipe / Tube
StandardASTM B188 (Bus Pipe), ASTM B75, EN 13600
Outside Diameter (OD)3 mm - 200 mm
Wall Thickness (WT)0.5 mm - 20 mm
Length2m - 6m (Straight), or Level Wound Coils (LWC)
Temper (Hardness)Soft Annealed (O60), Half-Hard (H02), Hard (H04)
Surface FinishBright Annealed (BA), Pickled, Polished


Standard Grade Comparison Table

Region / StandardUNS (USA)EN/DIN (Europe)JIS (Japan)GB (China)
Equivalent GradeC11000CW004A / Cu-ETPC1100T2


Chemical Composition Table (%)

ElementCopper (Cu)Oxygen (O)Lead (Pb) (Max)Others (Total)
Range≥99.900.02 - 0.040.005≥0.10


Mechanical Properties Table (Typical for H02 Half-Hard)

PropertyPerformance Data
Tensile Strength (Rm)245 - 325 MPa
Yield Strength (Rp0.2)170 - 280 MPa
Elongation (A50mm)≥12%
Hardness (Rockwell F)60 - 85 HRF


Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
