Copper rod

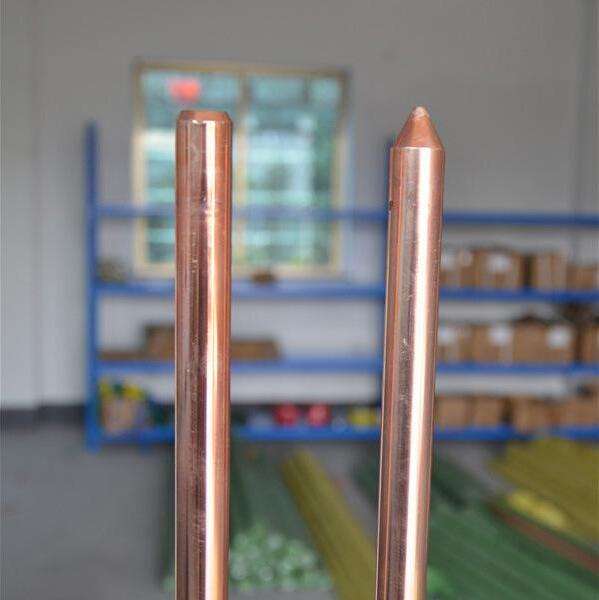

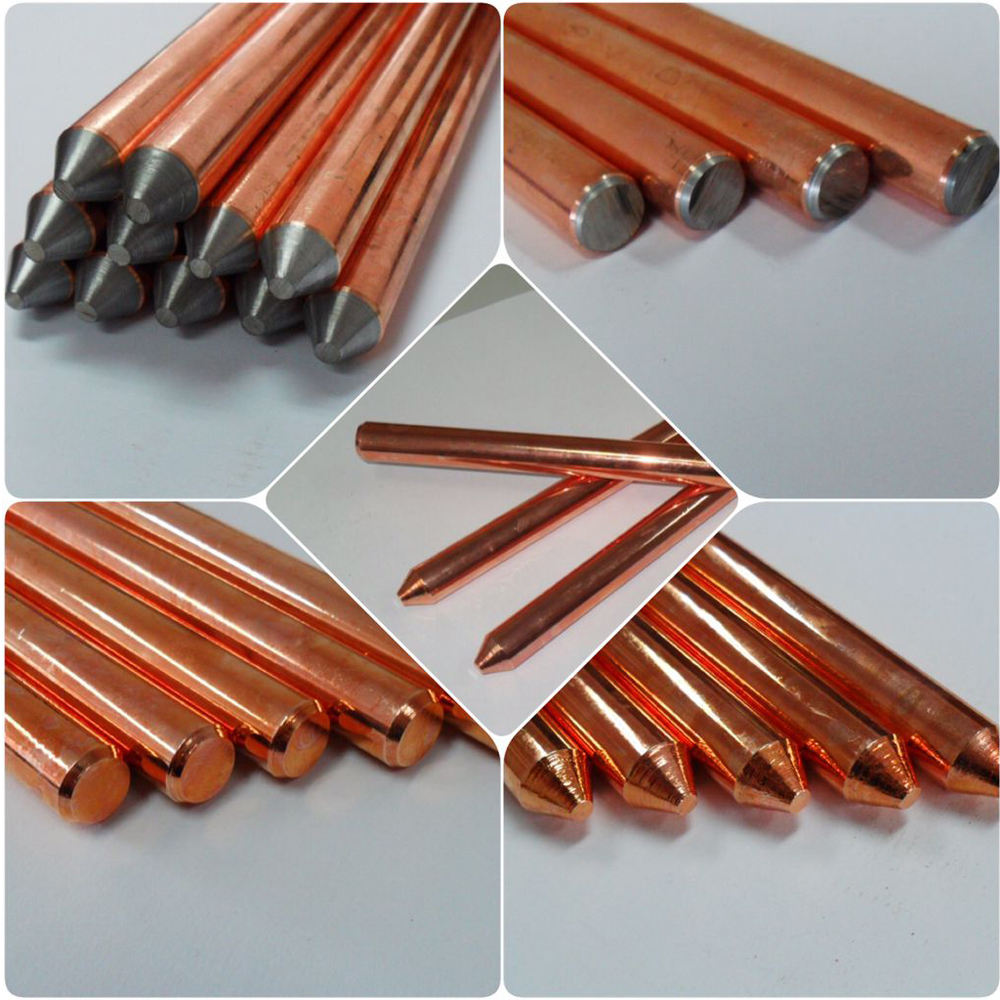

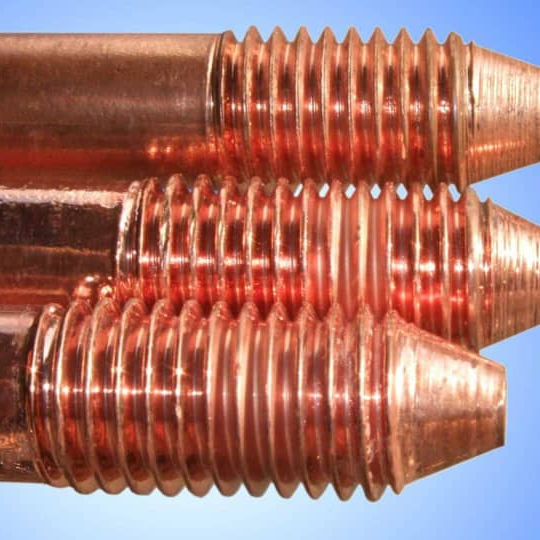

Copper plated earth bar

‹

›

‹

  • Copper plated earth bar
  • Copper plated earth bar
  • Copper plated earth bar
  • Copper plated earth bar

›

A copper-plated earth bar (also known as a grounding bus bar) is a critical component in electrical grounding systems. It provides a central, low-resistance point for connecting multiple grounding conductors, ensuring that fault currents are safely diverted to the earth to protect personnel and equipment.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

Core MaterialHigh-tensile Steel$99.9%$ Pure ETP Copper
SurfaceElectro-deposited CopperNatural Copper
Main BenefitHigh mechanical strength/Low costMaximum conductivity/Corrosion resistance
Typical UseStandard residential/Light commercialIndustrial, Data Centers, High-voltage


Specifications Table

FeatureDetails
Product NameCopper Plated Earth Bar / Grounding Bar
Base MaterialLow Carbon Steel (typically Q235 or equivalent)
Plating Material99.9% Pure Electrolytic Copper
Plating Thickness0.254 mm (254 microns) standard, or customized
Common Sizes25x3 mm, 25x4 mm, 30x5 mm, 40x6 mm, 50x5 mm
StandardUL 467, BS 7430, IEC 62561
Connection HolesPre-drilled (M6, M8, M10, M12) or customized
Surface FinishSmooth, Bright Copper


Comparison: Plated vs. Solid Copper

FeatureCopper Plated Steel BarSolid Copper Bar (C11000)
ConductivityLower (Core is steel)Highest
Tensile StrengthHigherLower
PriceEconomicalExpensive
Primary GoalSafety / Grounding / Fault PathPower Distribution / Ampacity


Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
