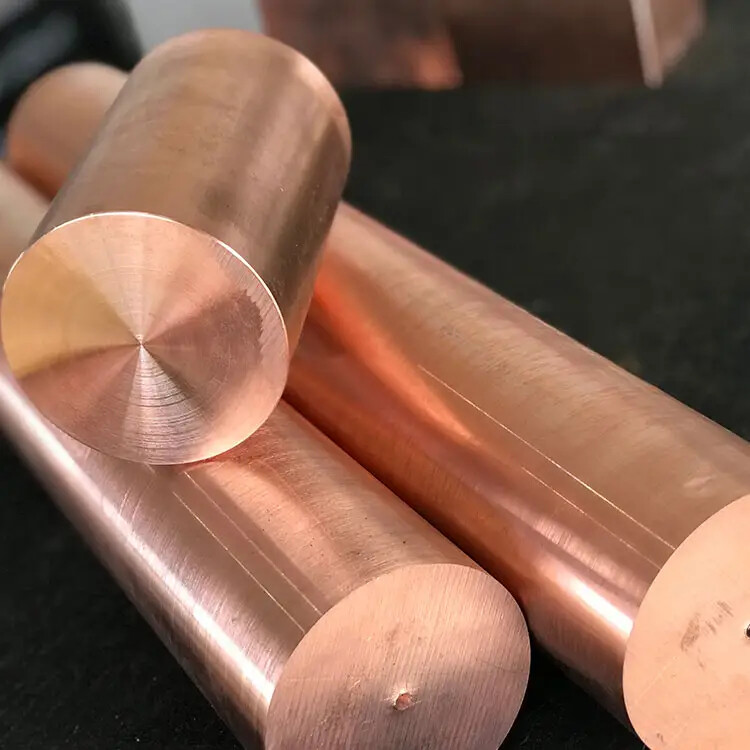

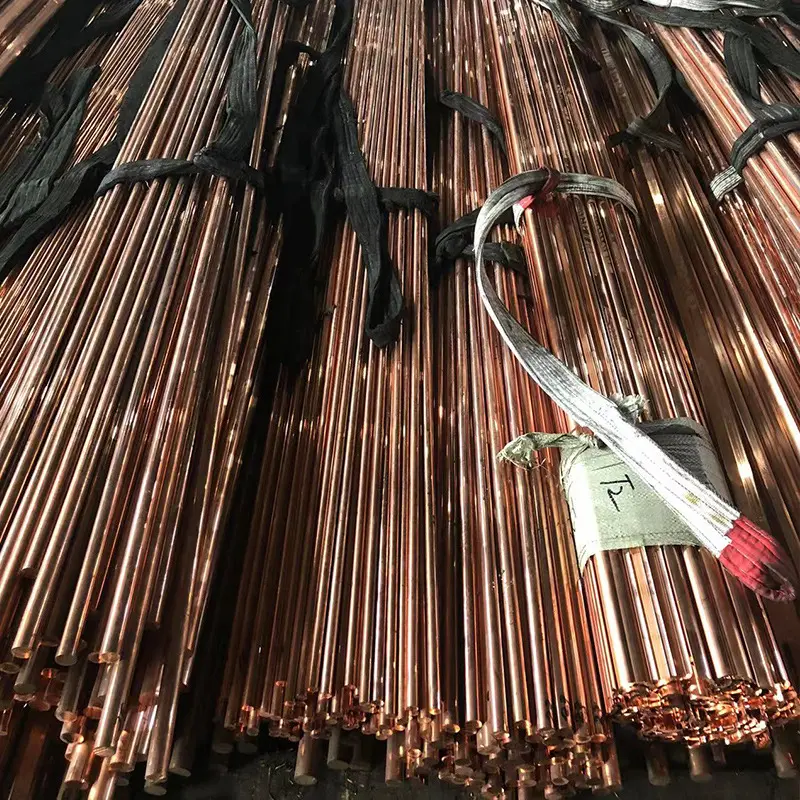

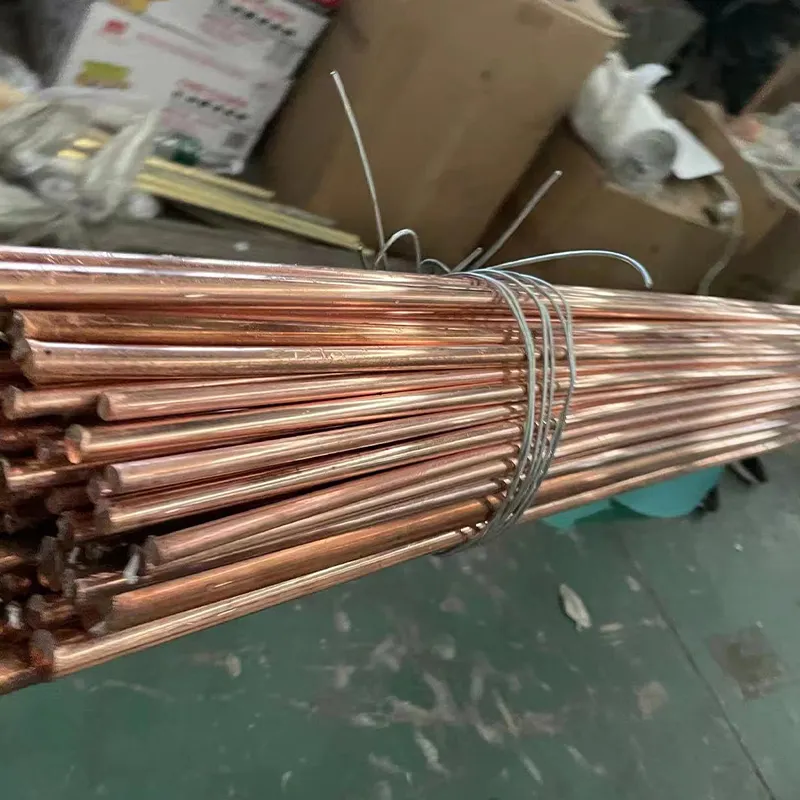

C10100 Copper Rod

C10100 copper rod, known as Oxygen-Free Electronic (OFE) copper, is one of the purest forms of copper available, with a minimum copper content of 99.99%. It offers outstanding electrical and thermal conductivity, excellent ductility, and high resistance to corrosion. The absence of oxygen in C10100 minimizes the risk of embrittlement and enhances its suitability for welding and brazing. Widely used in critical electrical applications, it's ideal for high-end audio systems, semiconductor manufacturing, and superconductors. Its high conductivity and purity make it suitable for vacuum environments and sensitive electronic applications, such as telecommunication cables and electronic connectors. Its performance makes it highly valuable in advanced technology sectors.

Description

Applications

High-Vacuum TechNuclear ResearchSemiconductorsMedical ImagingAerospace
SuperconductorsTelecommunicationsCryogenicsAudio ProductionPower Generation

Specifications Table

Product NameC10100 Oxygen-Free Electronic (OFE) Copper Rod
StandardASTM B187 (Bus Bar), ASTM B170 (Grade 1), EN 13601
Diameter Range3 mm - 200 mm
Length2m - 6m, or precision-cut slugs
Toleranceh8, h9, h11 (Cold Drawn)
Temper (Hardness)Soft/Annealed (O60), Half-Hard (H02), Hard (H04)
Surface FinishBright, Polished, Mirror Finish

Standard Grade Comparison Table

Region / StandardUNS (USA)EN/DIN (Europe)JIS (Japan)GB (China)
Equivalent GradeC10100CW009A / Cu-OFEC1011TU1


Chemical Composition Table (%)

ElementCopper (Cu)Oxygen (O)Phosphorus (P)Tellurium (Te)Lead (Pb)
Range≥99.99≤0.0005≤0.0003≤0.001≤0.001


Mechanical Properties Table (Typical for H02 Half-Hard)

PropertyPerformance Data
Tensile Strength (Rm)260 - 340 MPa
Yield Strength (Rp0.2)200 - 300 MPa
Elongation (A50mm)≥12%
Hardness (Rockwell F)75 - 90 HRF


Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
