Stainless Steel Plate/Sheet

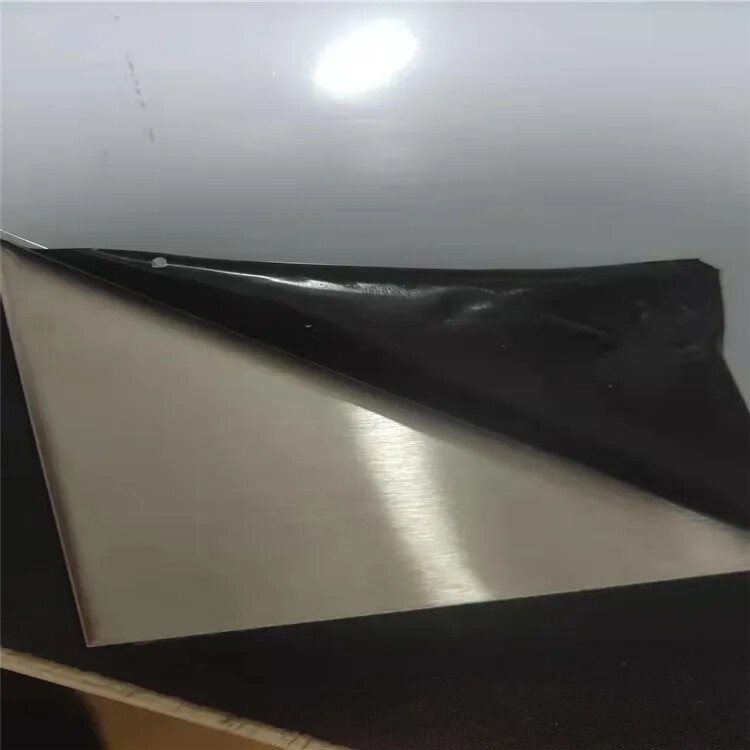

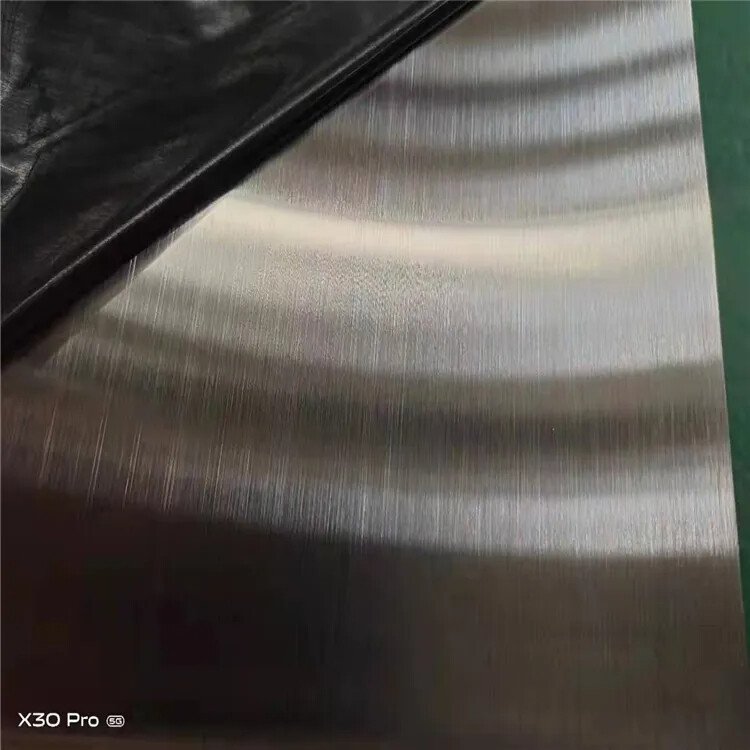

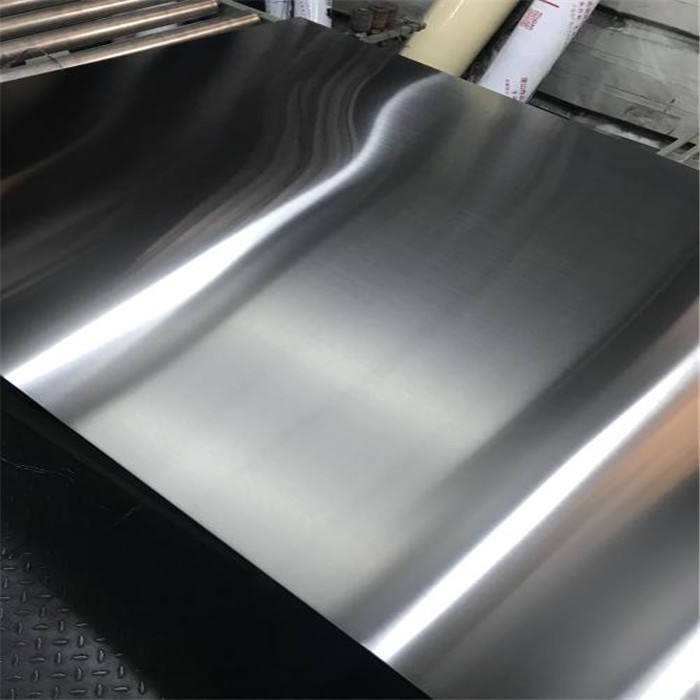

Brushed stainless steel sheet

‹

›

‹

  • Brushed stainless steel sheet
  • Brushed stainless steel sheet
  • Brushed stainless steel sheet
  • Brushed stainless steel sheet

›

Brushed stainless steel sheet is a decorative and functional finish achieved by mechanically polishing the metal with fine-grit abrasive belts or brushes. This process creates a unidirectional satin finish, characterized by a pattern of fine, parallel lines that reduce the surface reflectivity without losing the metallic luster.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

Interior DesignKitchen & CateringElevator & EscalatorHome AppliancesMedical & Labs
Retail & DisplaysAutomotive TrimUrban InfrastructureSignageFurniture Mfg.

Specifications Table

FeatureDetails
Product NameBrushed Stainless Steel Sheet
Common Grades304, 304L, 316, 316L, 430, 201
Finish TypesNo.4 (Satin), HL (Hairline), SB (Scotch Brite)
Thickness0.3 mm - 3.0 mm (Up to 6.0 mm for heavy-duty panels)
Width1000 mm, 1219 mm, 1250 mm, 1500 mm
Length2000 mm, 2438 mm, 3000 mm, 4000 mm, 6000 mm
ProtectionSingle or Double Layer PE/Laser Fiber Protective Film (70–100 micron)
EdgeSlit Edge or Mill Edge


Brushed Surface Comparison Table

Finish CodeNameAppearanceGrit Size / Processing
No.4Satin / BrushedShort, discontinuous parallel lines; low gloss.150# - 180# Abrasives
HLHairlineLong, continuous fine lines running the length of the sheet.150# - 320# Grinding belt
SBScotch BriteSoft, smooth satin finish with a very fine texture.Non-woven nylon abrasive
No.6Dull SatinMatte finish with less reflectivity than No.4.Tampico brushing


Chemical Composition Table (Typical % for 300 Series)

GradeC (Max)Mn (Max)Si (Max)P (Max)S (Max)CrNiMo
3040.082.000.750.0450.03018.0 - 20.08.0 - 10.5-
316L0.032.000.750.0450.03016.0 - 18.010.0 - 14.02.0 - 3.0


Mechanical Properties Table

GradeTensile Strength (MPa)Yield Strength 0.2% (MPa)Elongation (%)Hardness (HV)
304≥ 515≥ 205≥ 40150 - 200
316L≥ 485≥ 170≥ 40150 - 200
430≥ 450≥ 205≥ 22140 - 180


Application Scenarios

IndustryTypical Use CasePreferred Grade
ArchitectureElevator interiors, wall cladding, column covers.304 / 430
KitchenwareRange hoods, backsplashes, refrigerator panels.304 / 430
Public FacilitiesBus stations, handrails, airport signage.304
Coastal AreasOutdoor decorative panels, marine hardware.316L



Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
