Stainless Steel Plate/Sheet
Laser cut stainless steel sheet (customizable)

‹

›

‹

  • Laser cut stainless steel sheet (customizable)
  • Laser cut stainless steel sheet (customizable)
  • Laser cut stainless steel sheet (customizable)
  • Laser cut stainless steel sheet (customizable)

›

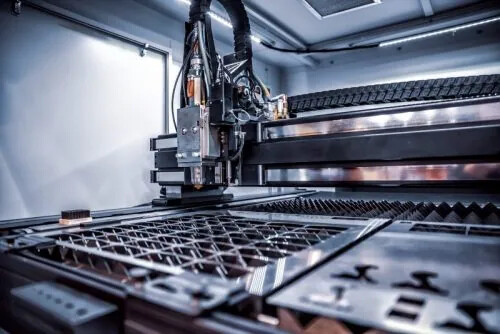

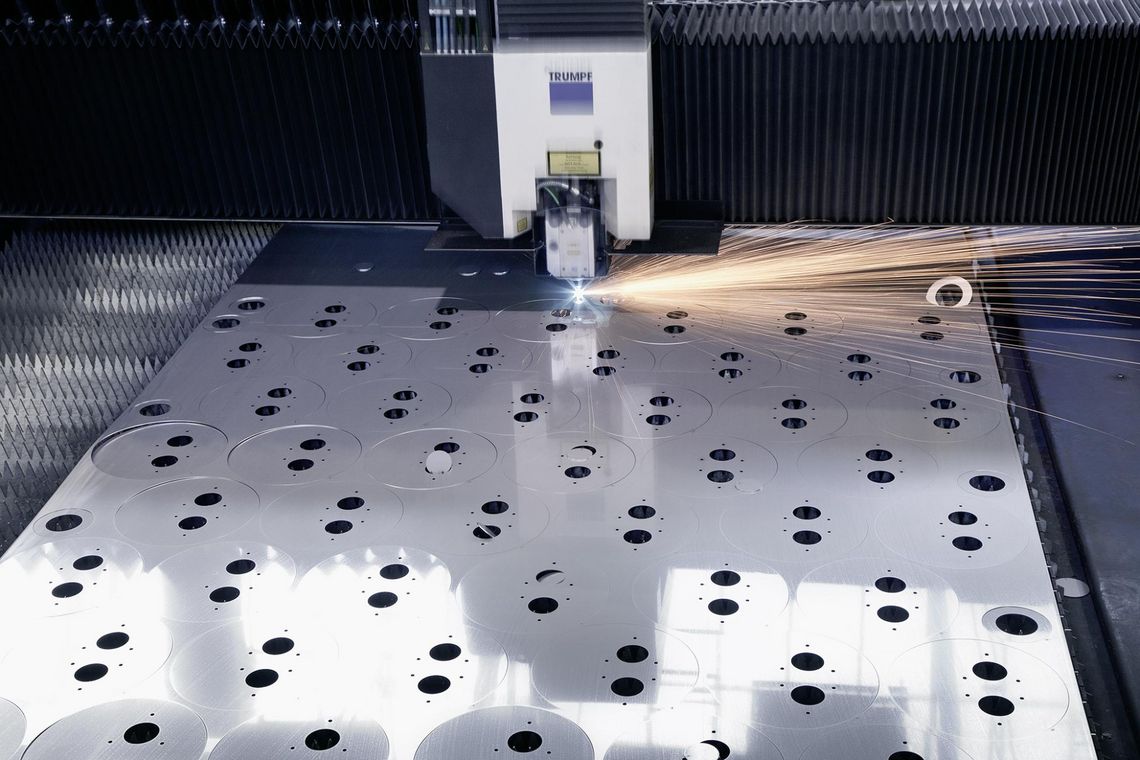

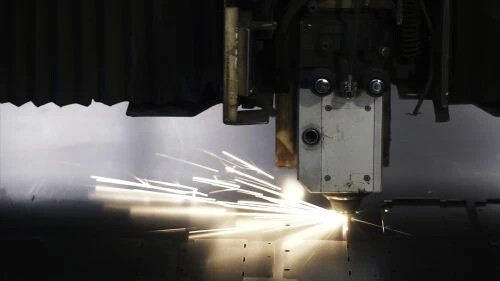

Laser-cut stainless steel sheets offer the ultimate in precision manufacturing, allowing for the creation of complex geometries and intricate patterns that are impossible with traditional mechanical punching. This process uses a high-powered fiber or CO₂ laser to melt and blow away material, resulting in exceptionally clean edges and high dimensional accuracy.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

ArchitectureFood & BeverageAcousticsChemical & OilAgriculture
ElectronicsMining & QuarryAutomotiveHVACInterior Design


Processing Specifications Table

Service NamePrecision Laser Cutting Service (Fiber Laser)
Material Grades201, 304, 304L, 316, 316L, 430, 310S, 904L
Maximum Sheet Size2000 mm × 6000 mm (Larger sizes available on specialized beds)
Thickness Range0.3 mm - 25.0 mm (Standard Fiber Laser range)
Cutting Accuracy± 0.05 mm to ± 0.1 mm (Depending on thickness)
Hole DiameterMinimum hole $geq$ material thickness
Supported Formats.DXF, .DWG, .STEP, .PDF, .AI
Additional ServicesV-Grooving, Bending (CNC), Welding, Deburring, Tapping


Cutting Capability by Grade & Thickness

Grade TypeMax Thickness (Clean Cut / Nitrogen)Max Thickness (Oxygen Cut)
Austenitic (304/316)Up to 16 mmUp to 25 mm
Ferritic (430)Up to 12 mmUp to 20 mm
Carbon SteelUp to 20 mmUp to 30 mm


Edge Quality & Surface Finish

FeaturePerformanceAdvantage
Edge Roughness Ra6.3 - 12.5 μmSmooth edges, often requiring no secondary grinding.
Heat Affected ZoneExtremely NarrowMinimal distortion or discoloration near the cut.
Kerf Width0.1 mm - 0.3 mmAllows for extremely intricate shapes and sharp corners.
Protective FilmLaser-Fiber FilmPrevents surface scratches from the laser bed slats.


Technical Comparison: Laser vs. Other Methods

FeatureFiber Laser CuttingPlasma CuttingWaterjet Cutting
PrecisionHighestModerateHigh
Speed (Thin Material)FastestFastSlow
Heat ImpactVery LowHighNone
Cost EfficiencyHigh (for thin/medium)High (for thick)Low (High cost)



Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
