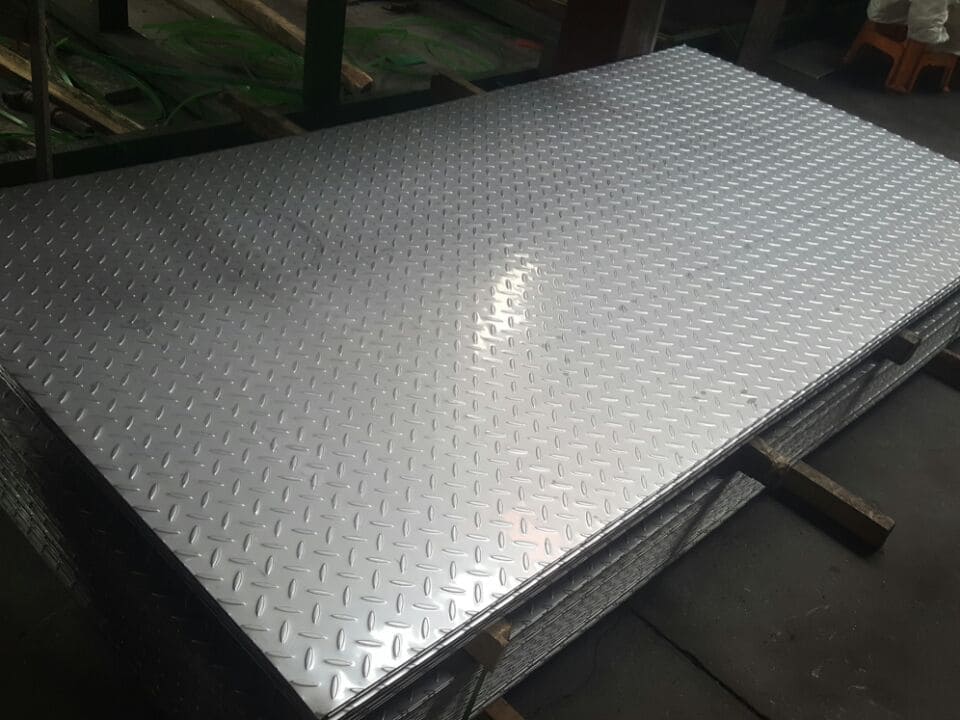

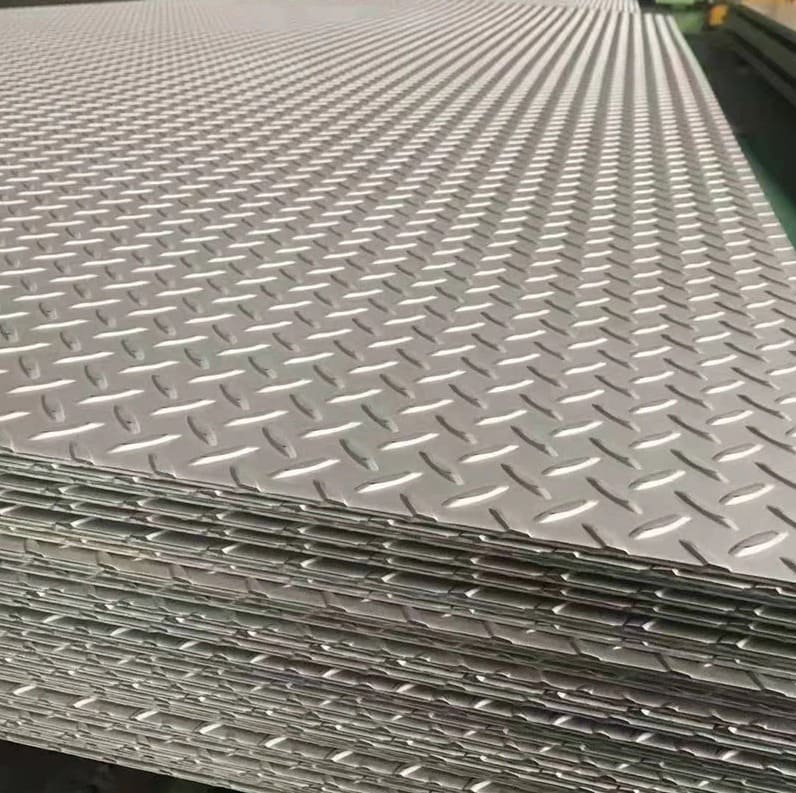

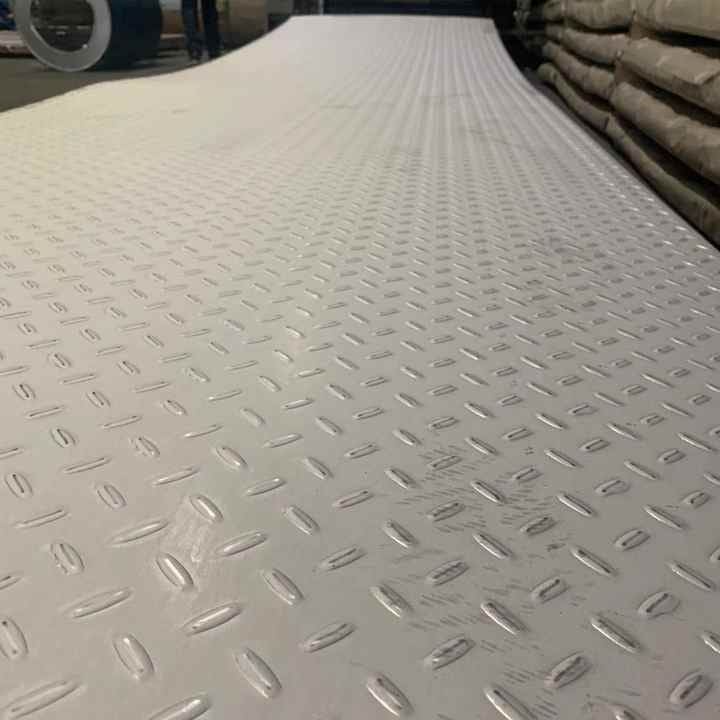

Stainless steel checkered plate

Stainless steel checkered plate, also known as tread plate or diamond plate, features a raised pattern on one side—typically diamonds, tear-drops, or lentils. While carbon steel versions are common, the stainless steel variant is the premium choice for environments requiring both heavy-duty slip resistance and extreme hygiene or corrosion protection.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

Industrial Plants	Transportation	Marine & Offshore	Food & Beverage	Architecture
Water Treatment	Chemical & Petro	Construction	Public Infrastructure	Automotive

Specifications Table

Product Name	Stainless Steel Checkered Plate (Tread / Diamond Plate)
Common Grades	201, 304, 304L, 316, 316L, 430
Pattern Types	Mandorla (Lentil), Diamond (T), 1-bar, 3-bar, 5-bar
Thickness	0.8 mm - 3.0 mm (Cold Rolled) 3.0 mm - 12.0 mm (Hot Rolled)
Width	1000 mm, 1219 mm, 1250 mm, 1500 mm
Length	2000 mm, 2438 mm, 3000 mm, 6000 mm
Surface Finish	2B, BA, No.1 (Industrial), Polished
Standard	ASTM A793, JIS G4304, GB/T 3280

Popular Pattern Comparison Table

Pattern Name	Visual Description	Primary Benefit
5-Bar (Willow Leaf)	Five small parallel bars in a staggered grid.	Highest slip resistance; industry standard.
Mandorla (Lentil)	Single, oval-shaped raised grains.	Easier to clean while maintaining grip.
Diamond (T-Pattern)	Single diagonal raised lines forming diamonds.	Aesthetic appeal for decorative use.
1-Bar / 2-Bar	Simplified raised lines.	Low-profile grip for light-duty walk-ways.

Chemical Composition Table (Typical % for 304/316)

Grade	C (Max)	Mn (Max)	Si (Max)	P (Max)	S (Max)	Cr	Ni	Mo
304	0.08	2.00	0.75	0.045	0.030	18.0 - 20.0	8.0 - 10.5	-
316L	0.03	2.00	0.75	0.045	0.030	16.0 - 18.0	10.0 - 14.0	2.0 - 3.0

Mechanical Properties Table

Grade	Tensile Strength (MPa)	Yield Strength 0.2% (MPa)	Elongation (%)	Hardness (HB)
304	≥ 515	≥ 205	≥ 40	≤ 201
316L	≥ 485	≥ 170	≥ 40	≤ 217
201	≥ 520	≥ 245	≥ 40	≤ 241

Application & Industry Use

Industry	Typical Application
Transportation	Flooring for buses, trucks, trailers, and ambulances.
Construction	Stair treads, platforms, catwalks, and wheelchair ramps.
Food & Beverage	Anti-slip floors in professional kitchens and cold storage.
Marine	Boat decks, docks, and offshore oil platforms (316L grade).
Architecture	Decorative wall protection, elevator flooring, and heavy-duty doors.

Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.

-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)

-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)

-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.

Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.

Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
