Copper rod
C10200 Copper Rod

‹

›

‹

  • C10200 Copper Rod
  • C10200 Copper Rod
  • C10200 Copper Rod
  • C10200 Copper Rod
  • C10200 Copper Rod

›

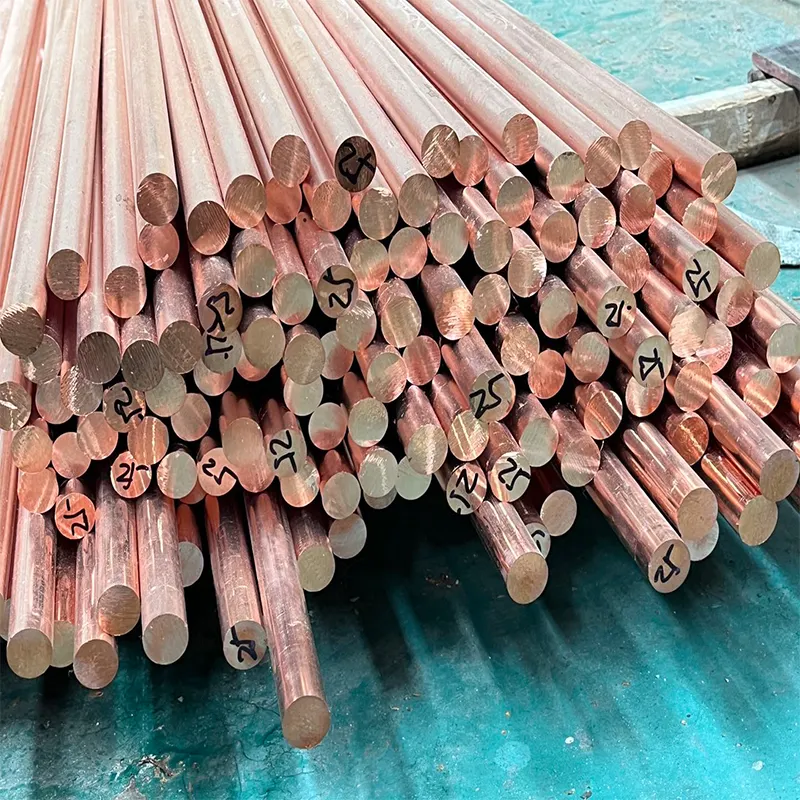

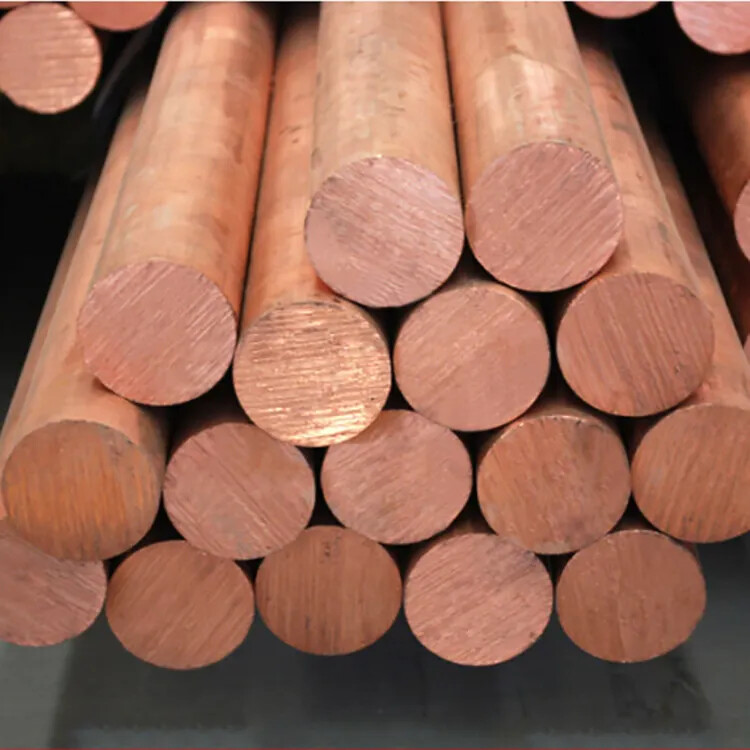

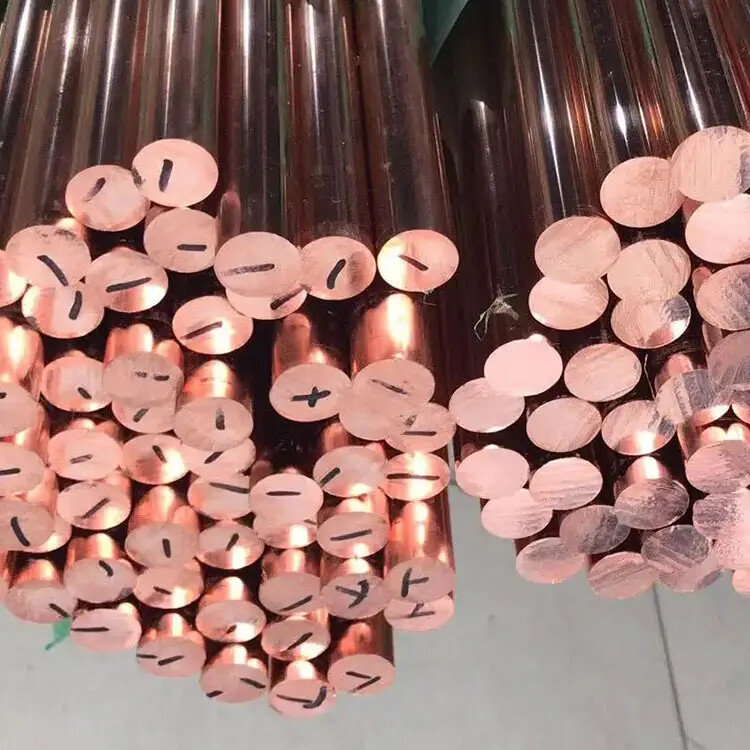

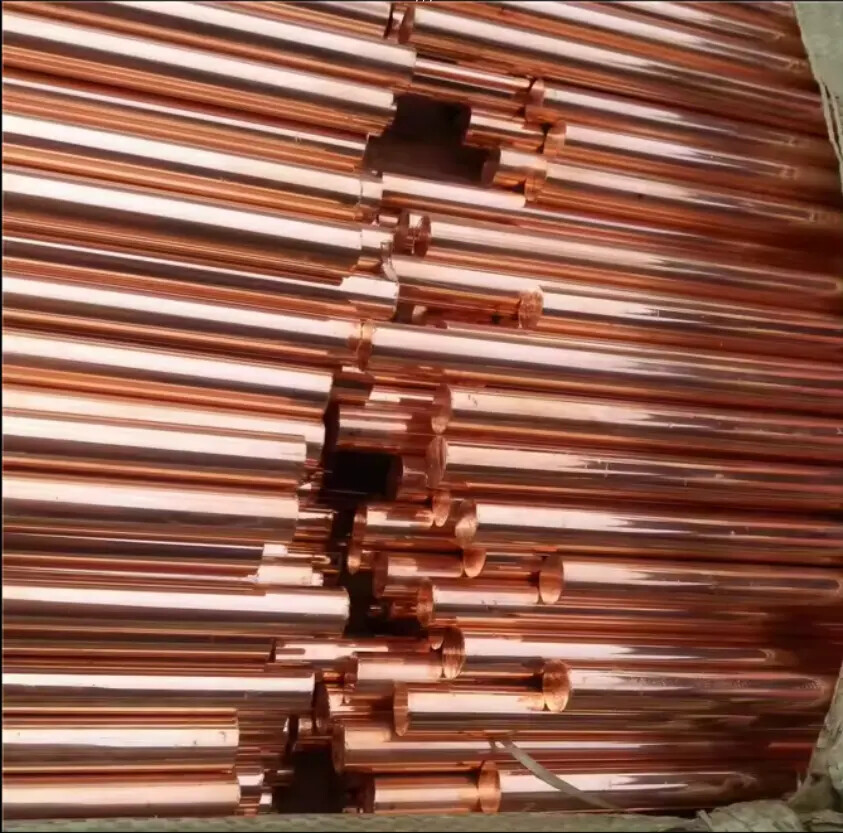

C10200 copper rod, known as Oxygen-Free (OF) Copper, is a high-purity wrought alloy containing at least 99.95% copper. Because it is produced in a non-oxidizing atmosphere, it lacks the cuprous oxides found in standard copper grades. This makes it the premier choice for high-vacuum technology, cryogenics, and advanced electronics where absolute reliability and maximum conductivity are required.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

Vacuum ElectronicsPower DistributionRenewable EnergySemiconductorsAudio Engineering
Medical ImagingTelecommunicationsCryogenicsNuclear ResearchAerospace


Specifications Table

Product NameC10200 Oxygen-Free Copper Rod
StandardASTM B187 (Bus Bar), ASTM B124 (Forging), EN 13601
Diameter Range3 mm - 250 mm
Length2m - 6m (Standard), or precision-cut pieces
Toleranceh8, h9, h11 (Cold Drawn)
Temper (Hardness)Soft/Annealed (O60), Half-Hard (H02), Hard (H04)
Surface FinishBright, Pickled, Polished, Mirror Finish

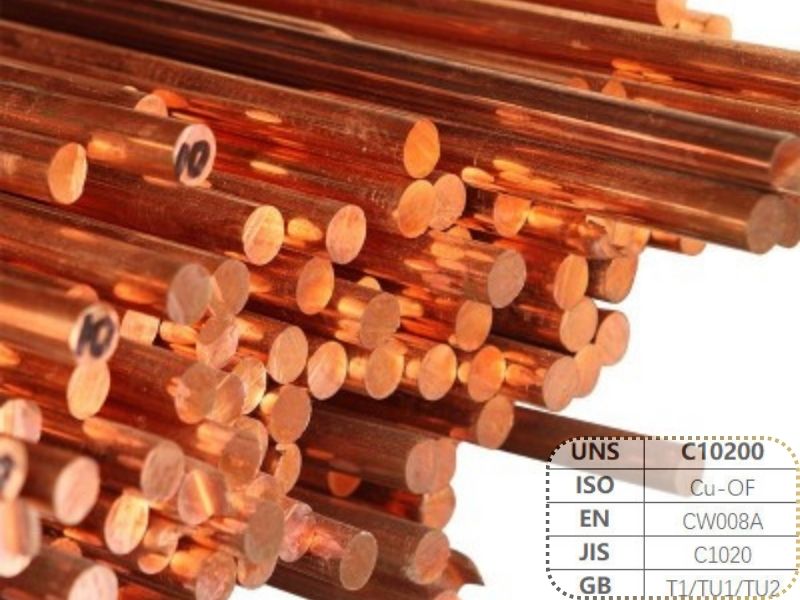

Standard Grade Comparison Table

Region / StandardUNS (USA)EN/DIN (Europe)JIS (Japan)GB (China)
Equivalent GradeC10200CW008A / Cu-OFC1020TU2


Chemical Composition Table (%)

ElementCopper (Cu)Oxygen (O)Phosphorus (P)Lead (Pb)
Range99.950.0010.00030.001


Mechanical Properties Table (Typical for H02 Half-Hard)

PropertyPerformance Data
Tensile Strength (Rm)260 - 330 MPa
Yield Strength (Rp0.2)200 - 280 MPa
Elongation (A50mm)≥12%
Hardness (Rockwell F)75 - 90 HRF


Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
